Follow the steps below to display the details of L-Platform:
Display the L-Platform Management, L-Platform Management (list), or Server List page.
Refer to "9.2.1 L-Platform Management Display Page" for information on how to display the page.
Click the Details button after selecting the L-Platform or the server required.
The L-Platform Details page will be displayed.
There are two types of display format for the L-Platform Details page below. The display format can be switched using the button (
) located on the top right hand side of the page.

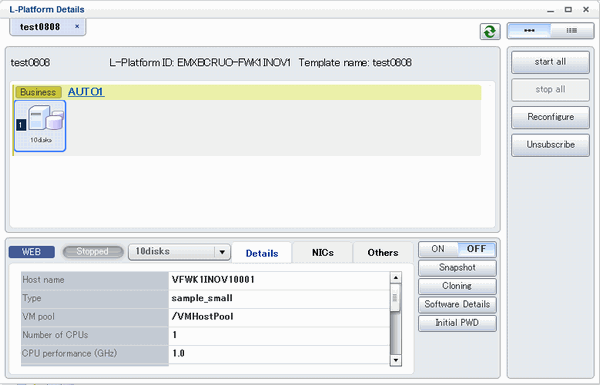

L-Platform configuration image
By clicking the button (
) located on the top right hand side of the page, the L-Platform configuration is displayed as an image.

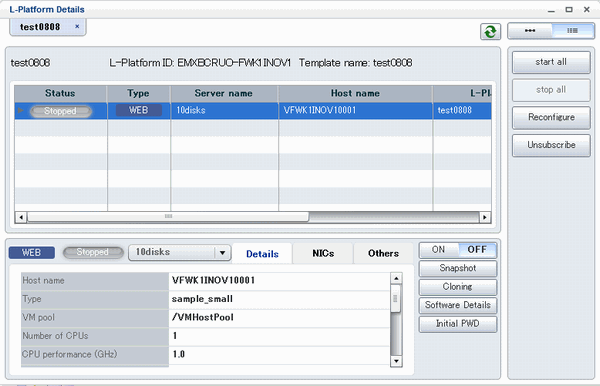

Server List
By clicking the button (
) located on the top right hand side of the page, a list of all virtual servers included in the L-Platform is displayed. The server List also displays the extended disks included in the virtual servers.
Point
The following buttons can be used on the L-Platform Details page:
Software Details button: Display software information
Initial PWD button: Confirm the initial password
Depending on the L-Platform settings, the "Initial password" is " ". Sometimes it is displayed as ".
The initial password is set after L-Platform deployment.
