ServerView Resource Orchestrator Cloud Edition V3.1.0 User's Guide for Infrastructure Administrators

5.4 Server List Display

Perform the following steps to display the server list:

1. From the ROR console, select the Dashboard tab, then select System Conditions in the displayed sub tab.

   The System Conditions window is displayed.

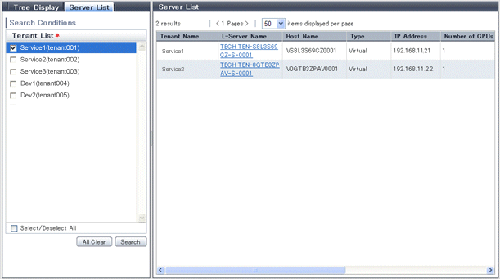

2. In the System Conditions window, select the Server List tab.

3. Enter the search conditions in the left pane.

   Select or enter the following item, and then click the Search button.

   Item	Explanation
   Tenant	In the displayed tenant list, select the checkbox of the tenant to display. Use the browser's "find on this page" feature to find a tenant when there are a large number of tenants. The Select/Deselect All button checkbox can be used to switch between selecting and deselecting all tenant checkboxes.

4. A list of servers that match the search conditions is displayed.



   The table below explains the items displayed in the server list.

   Item	Explanation
   Tenant Name	The tenant name of the tenant related to the L-Server Example: First Business Department
   L-Server Name	The server name of the L-Server Example: ID015-WEB-001
   Host Name	The host name of the L-Server Example: V4KRXZS6R60001
   Type	The L-Server type Example: economy
   IP Address	IP address of the L-Server control NIC Example: 192.0.2.10
   Number of CPUs	Number of CPUs Example: 2
   CPU Clock (GHz)	The CPU clock rate, in GHz units Example: 2.0
   Reserved CPU Clock (GHz)	The minimum applied value of the CPU clock rate reserved for the L-Server, in GHz units Example: 1.6 The CPU reserve clock rate is displayed only if the over-commit display function of the viewlist_ja.xml file is enabled. Refer to "8.8 System Conditions Server List Settings" in the "Operation Guide CE" for the viewlist_ja.xml file setting method.
   Memory (GB)	The memory size allocated to the L-Server, in GB units Example: 4.0
   Reserved Memory (GB)	The minimum applied value of the memory size rate reserved for the L-Server, in GB units Example: 2.0 The memory reserve size is displayed only if the over-commit display function of the viewlist_ja.xml file is enabled. Refer to "8.8 System Conditions Server List Settings" in the "Operation Guide CE" for the viewlist_ja.xml file setting method.
   System Disk (GB)	The disk size used as the system disk, in GB units Example: 30.0
   Total Added Disk(GB)	The total value of the disk size for added disks. If there are multiple added disks, the total value for those disks is output. The unit is GB. Example: 60.0

   Note

   Clicking the server list column headers to sort the columns is effective only for the range displayed in that same page. The sorting specification is reset when the next or previous page is displayed. Sorting spanning multiple pages is not available.

   Point

   The following describes how to find an L-Server to display when there are a large number of servers in the server list.

   1. Select the checkbox for the tenant in the pane on the left. If you do not know the tenant name, select the Select/Deselect All checkbox so that all tenant checkboxes are checked.

   2. Click the Search button in the pane on the left.

   3. Use the browser's "find on this page" feature to find the L-Server to display while the server list for the tenant found in step 2 is displayed in the pane on the right. You can change the number of items displayed per page with the drop-down list at the top of the pane on the right. For example, change the number of results displayed from 50 to 300.
