2.6 Output Adapter

The output adapter is a feature that outputs the processing results of complex event processing rules externally.

This product provides the three output adapters shown below, according to objective of the user:

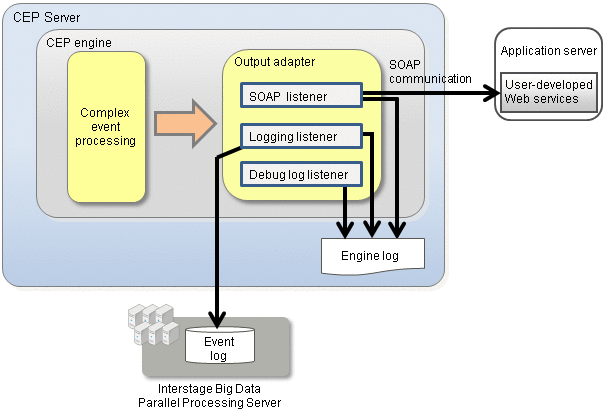

Figure 2.5 Output adapter

Table 2.1 Overview of the output adapter
Output adapter	Details of feature	Output destination
SOAP listener	Notifies the results of complex event processing (events) to a user-developed Web service, using SOAP communication	User-developed Web service Engine log (for send records)
Logging listener	Logs the results of complex event processing	Interstage Big Data Parallel Processing Server Engine log
Debug log listener	Outputs debug information on complex event processing rules	Engine log
