13.2.5 Console View

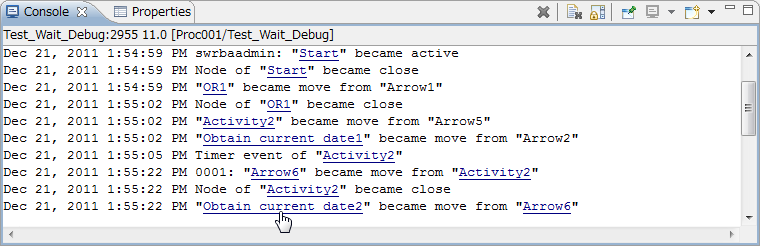

In the Console view, the process instance execution history is displayed.

The execution history of the process instance or node selected in the Debug view will be displayed.

Click the node name displayed in the Console to open the Process Definition (editor) in the workbench (if it is already open, the editor moves to the front).

Note

If the execution history contains an error message, the message will be displayed with standard error color.
Underlined node names are displayed in the hyperlink text color.
In Console view there is no limitation of message length by default.

To change the standard error color or limit the message length perform the following steps

  1. Select Preferences from Window menu.

  2. Select Run/Debug >> Console from the tree in Preferences dialog.

  3. To change the color of standard error click on Standard Error Text Color.

  4. To change the length limit of messages check Fixed width console and click on Maximum character width.

To change the color of hyperlink text, perform the following steps:

  1. Select Window >> Preferences.

  2. Select General >> Appearance >> Colors and Fonts from the left tree in the Preferences dialog box.

  3. Click on Hyperlink text color to specify the color.

Note

The following options from Run/Debug >> Console of Preferences dialog are not effective on Systemwalker Runbook Automation Console

  • Show when program writes to standard out

  • Show when program writes to standard error

  • Standard In text color

Operations that can be used

In the Console view, the following operations can be used.

Image/Button

Name

Description

Location of display

Close Console

Closes the currently active Console.

To open a closed Console, use the Open Console command.

Toolbar

Clear Console

Clears the string displayed on the currently active Console.

Context menu and Toolbar

Display Selected Console

This cannot be used in Systemwalker Runbook Automation.

Toolbar

Open Console

Opens a new Console. To open the Console, open the drop-down menu on the right of the button, then select the Console to be opened.

Toolbar

Pin Console

Pins the current Console, so that it will remain in front of all the other Consoles.

Toolbar

Scroll Lock

Specify whether the scroll lock can be used in the current Console.

Context menu and Toolbar

Copy

Copies the selected element from the Console to the system Clipboard.

Context menu

Cut

This cannot be used in Systemwalker Runbook Automation.

Context menu

-

Find/replace...

Search can be executed using the specified expression.

Replace cannot be used in Systemwalker Runbook Automation.

Context menu

Paste

This cannot be used in Systemwalker Runbook Automation.

Context menu

-

Open Link

This cannot be used in Systemwalker Runbook Automation.

Context menu
