6.11 Adding Annotations

You can add annotations to make comments on your process definition and explain important aspects of your process design.

To add an annotation:

  1. Display the process definition in the Process Definition Editor.

  2. Click the annotation button in the palette.

  3. In the Process Definition Editor, drag to draw the annotation.

  4. Click the annotation and type your comments.

  5. If the annotation refers to a particular node, you can connect them to visually represent their relation. To do so:

    1. Click the Arrow button in the toolbar.

    2. Drag the cursor from the annotation to the node it refers to.

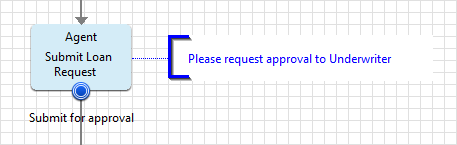

    The following example shows an annotation that has been connected to a node.

    Figure 6.14 Adding Annotations and Connecting them to Nodes

    Note

    You can connect only one annotation to a node.

  6. You can resize the annotation as follows:

    1. Select the annotation.

    2. Point to one of the sizing handles and drag the annotation to the new size.
