Systemwalker Runbook Automation Studio User's Guide
Systemwalker

1.1.3 Relationship between Automated Operation Processes and Operation Components

This section explains the relationship between Automated Operation Processes and operation components.

Relationship between workspaces, projects and objects

Automated Operation Processes and operation components are managed as separate projects.

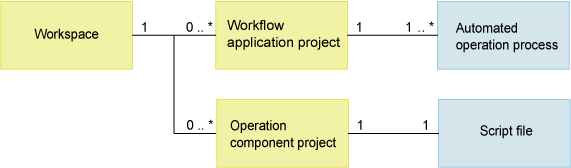

The following diagram illustrates the relationship between workspaces, projects and objects:

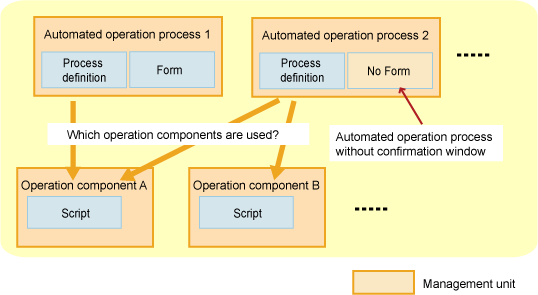

Relationship between Automated Operation Processes and operation components

Automated Operation Processes do not actually contain operation components. Rather, Automated Operation Processes hold only information about which operation components are used from the Automated Operation Process.

Note that there are no forms for Automated Operation Processes that do not require human intervention (that is, those that do not have confirmation windows).
