Function overview
Systemwalker Service Quality Coordinator can be used to analyze the performance of business applications running on Interstage Application Server, analyzing things such as the size of the Java heap, the status of connections, and processing time. This makes it possible to create easy-to-understand reports according to various objectives, and also makes it possible to track the operational status of the system and various other trends.
Under the Java EE environment

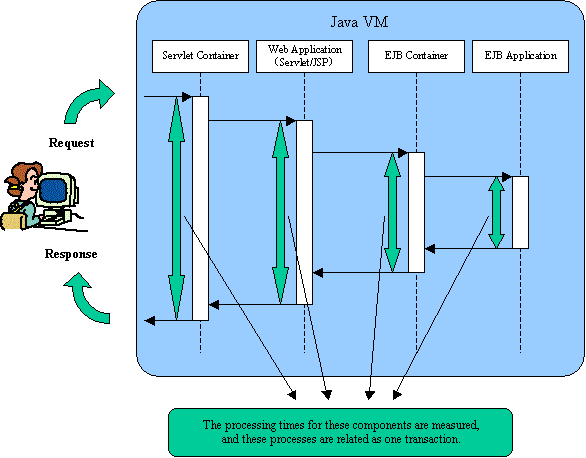

If IJServer Clusters are monitored, the processing times for each component of Java EE applications can be measured.
This enables breakdown performance analysis for transactions of Java EE applications, which makes it easier to detect bottlenecks.
Under the J2EE environment
If IJServer Work Units are monitored, the processing times for each component of J2EE applications can be measured.
This enables breakdown performance analysis for transactions in J2EE applications, which makes it easier to detect bottlenecks.
Note
In this product, the multi system function of Interstage Application Server is not supported.
See
Refer to the Interstage Application Server manuals for more information.
Collection interval
The collection interval is 5 minutes.
Procedure
The procedure for linking to Interstage Application Server is as follows:
