3.3.1 Monitoring Window

The monitoring window of the Console provides two functions: the Summary function and the Drilled-Down function.

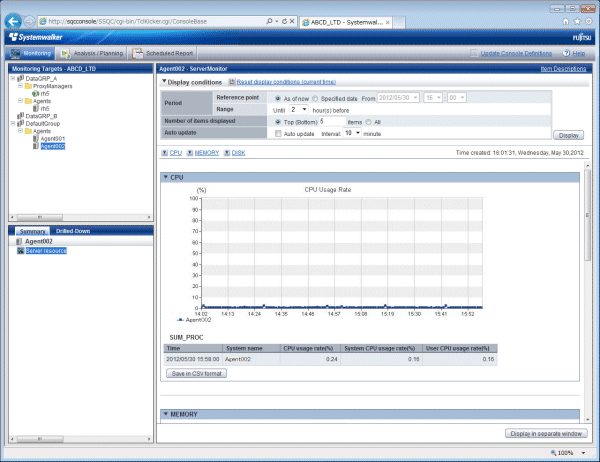

3.3.1.1 Summary function

The Summary view displays representative information to enable the user to understand the current status of the entire system.

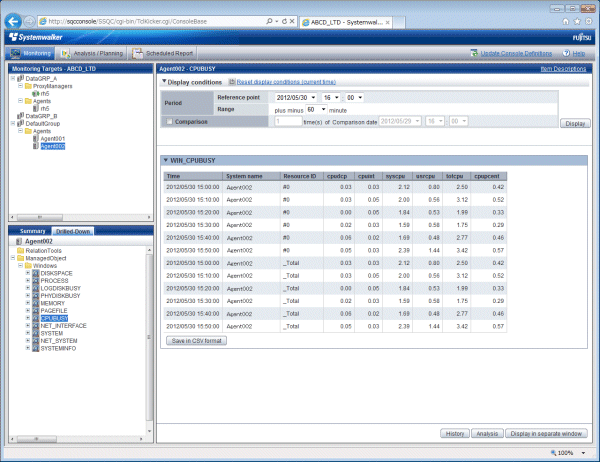

3.3.1.2 Drilled-Down function

The Drilled-Down view displays a variety of detailed information in chronological order based on the time that a problem occurred.
