This section describes the configuration file (bdpp.conf) used by this product.
/etc/opt/FJSVbdpp/conf/bdpp.conf
Point
Separate "bdpp.conf" file templates for each server type are stored under "/DISK1/config_template" on the distribution media (DVD-ROM) of this product. Copy the relevant template to the system work directory and then edit the parameters to create the configuration file.
Note
When installing this product, create the configuration file in any directory. The storage directory of the created configuration file must be specified as the "BDPP_CONF_PATH" environment variable before installation.
The file content defines the information required for installation and setup of this product.
A separate file must be created for each of the server functions.
Note
For parameters for which specifying a value is optional, enter up to "parameter=" but omit the value.
Example when value is omitted:
BDPP_PCL_ PRIMARY_CONNECT2=
Item No. | Parameter | Mandatory/Optional | Value to be specified (settings example) | Explanation |
|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Specify the virtual host name to be set for the cluster. For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Specify the virtual IP address to be set for the cluster |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Specify the representative host name of the master server (primary). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
4 | BDPP_PRIMARY_IP | Mandatory | 10.10.10.11 | Specify the representative IP address that will be used to connect to the master server (primary) public LAN. (The IP address that will be used to connect to public LAN1 in the graphic) |
5 | BDPP_PRIMARY_ADM_IP | Mandatory | 192.168.1.1 | Specify the IP address that will be used to connect to the master server (primary) admin LAN. (The IP address that will be used to connect to the admin LAN in the graphic) |
6 | BDPP_SECONDARY_NAME | Mandatory | master2 | Specify the representative host name of the master server (secondary). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
7 | BDPP_SECONDARY_IP | Mandatory | 10.10.10.12 | Specify the representative IP address that will be used to connect to the master server (secondary) public LAN. (The IP address that will be used to connect to public LAN1 in the graphic) |
8 | BDPP_ SECONDARY_ADM_IP | Mandatory | 192.168.1.2 | Specify the IP address that will be used to connect to the master server (secondary) admin LAN. (The IP address that will be used to connect to the admin LAN in the graphic) |
9 | BDPP_PCL_CLUSTER_GROUP | Mandatory | bdppcluster | Specify the cluster group name to be set for the cluster. |
10 | BDPP_PCL_PRIMARY_iRMC_IP | Mandatory | 192.168.1.11 | Specify the IP address of the master server (primary) remote management controller. |
11 | BDPP_PCL_PRIMARY_iRMC_ACCOUNT | Mandatory | root | Specify the account of the master server (primary) remote management controller. |
12 | BDPP_PCL_PRIMARY_iRMC_PASS | Mandatory | password | Specify the password of the master server (primary) remote management controller. |
13 | BDPP_PCL_SECONDARY_iRMC_IP | Mandatory | 192.168.1.12 | Specify the IP address of the master server (secondary) remote management controller. |
14 | BDPP_PCL_SECONDARY_iRMC_ACCOUNT | Mandatory | root | Specify the account of the master server (secondary) remote management controller. |
15 | BDPP_PCL_SECONDARY_iRMC_PASS | Mandatory | password | Specify the password of the master server (secondary) remote management controller. |
16 | BDPP_PCL_PRIMARY_CIP | Mandatory | 192.168.2.11 | Specify the IP address (*1) used for the master server (primary) CIP (cluster interconnect protocol). |
17 | BDPP_PCL_SECONDARY_CIP | Mandatory | 192.168.2.12 | Specify the IP address (*1) used for the master server (secondary) CIP (cluster interconnect protocol). |
18 | BDPP_PCL_ PRIMARY_CONNECT1 | Mandatory | eth5 | Specify the master server (primary) side NIC name (NIC5) used for connections between clusters. |
19 | BDPP_PCL_ PRIMARY_CONNECT2 | Optional | eth6 | Specify the master server (primary) side NIC name (NIC6) used for connections between clusters. |
20 | BDPP_PCL_ SECONDARY_CONNECT1 | Mandatory | eth5 | Specify the master server (secondary) side NIC name (NIC5) used for connections between clusters. |
21 | BDPP_PCL_ SECONDARY_CONNECT2 | Optional | eth6 | Specify the master server (secondary) side NIC name (NIC6) used for connections between clusters. |
22 | BDPP_GLS_ PRIMARY_CONNECT1 | Mandatory | eth1 | Specify the master server (primary) NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the graphic) |
23 | BDPP_GLS_ PRIMARY_CONNECT2 | Optional | eth2 | Specify the master server (primary) NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the graphic) |
24 | BDPP_GLS_ SECONDARY_CONNECT1 | Mandatory | eth1 | Specify the master server (secondary) NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the graphic) |
25 | BDPP_GLS_ SECONDARY_CONNECT2 | Optional | eth2 | Specify the master server (secondary) NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the graphic) |
26 | BDPP_GLS_POLLING1_IP | Mandatory | 10.10.10.100 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN1 in the graphic) |
27 | BDPP_GLS_POLLING2_IP | Optional | 10.10.10.101 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN2 in the graphic) |
28 | BDPP_DISKARRAY_iSCSI1_IP | Mandatory | 10.10.11.11 | Specify the IP address of the storage system disk array iSCSI-CA port to which the connection will be made |
29 | BDPP_DISKARRAY_iSCSI2_IP | Optional | 10.10.12.11 | If the storage system connection has been duplicated, specify the other IP address of the storage system disk array iSCSI-CA port to which the connection will be made. |
30 | BDPP_ROR_ADMIN_IP | Mandatory | 192.168.1.1 | Specify the master server (primary) admin LAN IP address to be specified when installing ROR. |
31 | BDPP_ROR_ADMIN_ACCOUNT | Mandatory | root | Specify the account of the local server used when installing ROR. |
32 | BDPP_ROR_ADMIN_PASS | Mandatory | password | Specify the password of the local server used when installing ROR. |
33 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | If DFS is to be used as the file system, specify YES (or yes). |
34 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Specify the DFS mount point. This parameter is mandatory if YES is specified for BDPP_PDFS_FILESYSTEM. |
35 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | To register a user ID with permissions for the execution of MapReduce and access to the file system (DFS), specify the user name and UID. When registering multiple user IDs, use a space ( ) to separate each user name and UID. Example bdppuser1,1500 bdppuser2,1501 bdppuser2,1502 |
36 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Specify this to register a user group name and GID for the execution of MapReduce and to access the file system (DFS). |
37 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Specify the name of the top directory that stores the data used in Hadoop on the file system (DFS). The data used in Hadoop and the results data processed in Hadoop will be stored under the directory that is specified here. |
*1: An interconnect private IP interface can be built by using an IP address provided for a private network.

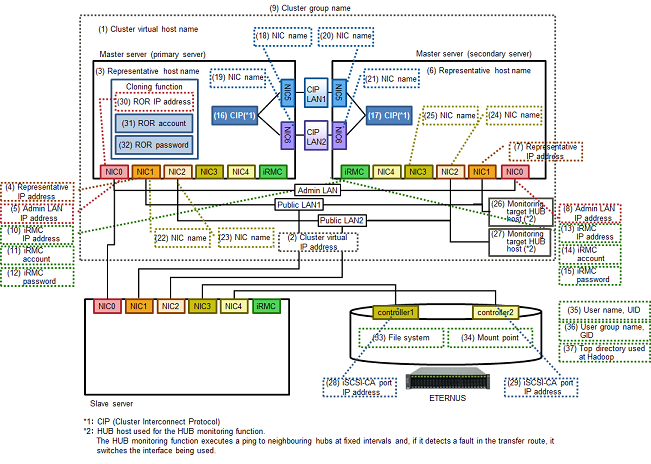

Figure A.1 Network configuration of the master server and bdpp.conf parameters
Item No. | Parameter | Mandatory/Optional | Value to be specified (settings example) | Explanation |
|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Specify the value that was specified for the master server bdpp.conf BDPP_CLUSTER_NAME parameter. |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Specify the value that was specified for the master server bdpp.conf BDPP_CLUSTER_IP parameter. |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Specify the value that was specified for the master server bdpp.conf BDPP_PRIMARY_NAME parameter. |
4 | BDPP_SECONDARY_NAME | Mandatory | master2 | Specify the value that was specified for the master server bdpp.conf BDPP_SECONDARY_NAME parameter. |
5 | BDPP_SERVER_NAME | Mandatory | slave1 | Specify the representative host name of the slave server. For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
6 | BDPP_SERVER_IP | Mandatory | 10.10.10.21 | Specify the representative IP address that will be used to connect to the slave server public LAN |
7 | BDPP_GLS_ SERVER_CONNECT1 | Optional | eth1 | Specify the slave server NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the graphic) |
8 | BDPP_GLS_ SERVER_CONNECT2 | Optional | eth2 | Specify the slave server NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the graphic) |
9 | BDPP_GLS_SERVER_POLLING1_IP | Optional | 10.10.10.100 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN1 in the graphic) |
10 | BDPP_GLS_SERVER_POLLING2_IP | Optional | 10.10.10.101 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN2 in the graphic) |
11 | BDPP_ROR_ADMIN_IP | Mandatory | 192.168.1.1 | Specify the value that was specified for the master server bdpp.conf BDPP_ROR_ADMIN parameter. |
12 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | Specify the value that was specified for the master server bdpp.conf BDPP_PDFS_FILESYSTEM parameter. |
13 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Specify the value that was specified for the master server bdpp.conf BDPP_PDFS_MOUNTPOINT parameter. |
14 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_USERS parameter. |
15 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_GROUP parameter. |
16 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_TOP_DIR parameter. |

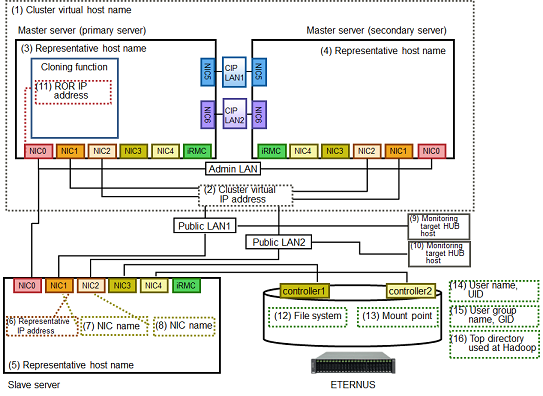

Figure A.2 Slave server network configuration and bdpp.conf parameter
Item No. | Parameter | Mandatory/Optional | Value to be specified (settings example) | Explanation | |
|---|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Specify the value that was specified for the master server bdpp.conf BDPP_CLUSTER_NAME parameter. | |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Specify the value that was specified for the master server bdpp.conf BDPP_CLUSTER_IP parameter. | |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Specify the value that was specified for the master server bdpp.conf BDPP_PRIMARY_NAME parameter. | |
4 | BDPP_SECONDARY_NAME | Mandatory | master2 | Specify the value that was specified for the master server bdpp.conf BDPP_SECONDARY_NAME parameter. | |
5 | BDPP_SERVER_NAME | Mandatory | develop | Specify the representative host name of the development server. For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. | |
6 | BDPP_SERVER_IP | Mandatory | 10.10.10.30 | Specify the representative IP address of the development server. | |
7 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | If PDFS is to be used as the file system, specify YES (or yes). This parameter must match the master server settings. | |
8 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Specify the PDFS mount point. This parameter is mandatory if YES is specified for BDPP_PDFS_FILESYSTEM. | |
9 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_USERS parameter. | |
10 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_GROUP parameter. | |
11 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_TOP_DIR parameter. | |

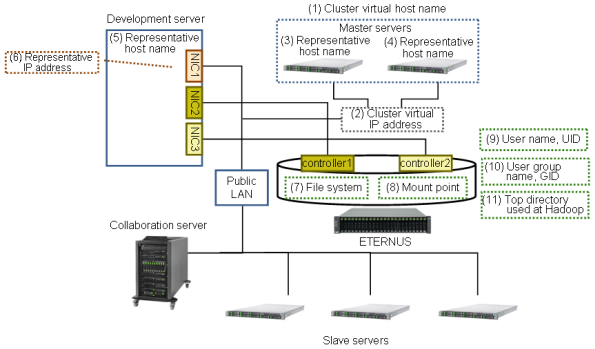

Figure A.3 Development server network configuration and bdpp.conf parameter
Item No. | Parameter | Mandatory/Optional | Value to be specified (settings example) | Explanation | |
|---|---|---|---|---|---|
1 | BDPP_SERVER_NAME | Mandatory | collaborate | Specify the representative host name of the collaboration server. For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. | |
2 | BDPP_SERVER_IP | Mandatory | 10.10.10.31 | Specify the representative IP address of the collaboration server. | |
3 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | If PDFS is to be used as the file system, specify YES (or yes). This parameter must match the master server settings. | |
4 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Specify the PDFS mount point. This parameter is mandatory if YES is specified for BDPP_PDFS_FILESYSTEM. | |
5 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_USERS parameter. | |
6 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_DEFAULT_GROUP parameter. | |
7 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Specify the value that was specified for the master server bdpp.conf BDPP_HADOOP_TOP_DIR parameter. | |
Figure A.4 Collaboration server network configuration and bdpp.conf parameter
BDPP_CLUSTER_NAME=cluster BDPP_CLUSTER_IP=10.10.10.1 BDPP_PRIMARY_NAME=master1 BDPP_PRIMARY_IP=10.10.10.11 BDPP_PRIMARY_ADM=192.168.1.1 BDPP_SECONDARY_NAME=master2 BDPP_SECONDARY_IP=10.10.10.12 BDPP_SECONDARY _ADM=192.168.1.2 BDPP_PCL_CLUSTER_GROUP=bdppcluster BDPP_PCL_PRIMARY_iRMC_IP=192.168.1.11 BDPP_PCL_PRIMARY_iRMC_ACCOUNT=irmc BDPP_PCL_PRIMARY_iRMC_PASS=password BDPP_PCL_SECONDARY_iRMC_IP=192.168.1.12 BDPP_PCL_SECONDARY_iRMC_ACCOUNT=irmc BDPP_PCL_SECONDARY_iRMC_PASS=password BDPP_PCL_PRIMARY_CIP=192.168.2.11 BDPP_PCL_SECONDARY_CIP=192.168.2.12 BDPP_PCL_PRIMARY_CONNECT1=eth5 BDPP_PCL_PRIMARY_CONNECT2=eth6 BDPP_PCL_SECONDARY_CONNECT1=eth5 BDPP_PCL_SECONDARY_CONNECT2=eth6 BDPP_GLS_PRIMARY_CONNECT1=eth1 BDPP_GLS_PRIMARY_CONNECT2=eth2 BDPP_GLS_SECONDARY_CONNECT1=eth1 BDPP_GLS_SECONDARY_CONNECT2=eth2 BDPP_GLS_POLLING1_IP=10.10.10.100 BDPP_GLS_POLLING2_IP=10.10.10.101 BDPP_DISKARRAY_iSCSI1_IP=10.10.11.11 BDPP_DISKARRAY_iSCSI2_IP=10.10.12.11 BDPP_ROR_ADMIN_IP=192.168.1.1 BDPP_ROR_ADMIN_ACCOUNT=admin BDPP_ROR_ADMIN_PASS=password BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_CLUSTER_IP=10.10.10.1 BDPP_CLUSTER_NAME=cluster BDPP_PRIMARY_NAME=master1 BDPP_SECONDARY_NAME=master2 BDPP_SERVER_NAME=slave1 BDPP_SERVER_IP=10.10.10.21 BDPP_GLS_SERVER_CONNECT1=eth1 BDPP_GLS_SERVER_CONNECT2=eth2 BDPP_GLS_POLLING1_IP=10.10.10.100 BDPP_GLS_POLLING2_IP=10.10.10.101 BDPP_ROR_ADMIN_IP=192.168.1.1 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_CLUSTER_IP=10.10.10.1 BDPP_CLUSTER_NAME=cluster BDPP_PRIMARY_NAME=master1 BDPP_SECONDARY_NAME=master2 BDPP_SERVER_NAME=develop BDPP_SERVER_IP=10.10.10.30 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_SERVER_NAME=collaborate BDPP_SERVER_IP=10.10.10.31 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
