You can compare the results of two simulation runs and view comparative reports. Both simulations must use a scenario that imports the same process definition.
Figure 12.17 Comparing simulation results
To compare two simulation results:
In the Compare Simulation area of the Simulation Reports view, select the two simulations that are to be compared from the drop-down lists.
By default, the drop-down list on the left displays the scenario that is currently open in the Scenario editor. The drop-down list on the right displays all scenarios simulating the same process definition that is being used in the current scenario. The available entries in the drop-down lists consist of the name of the scenario and scenario file name.
Activate the Compare check box.
The content of the Simulation Reports window will change and display comparative reports. Refer to section 12.3.4 Simulation Report Types for details. The following example shows a comparative report.

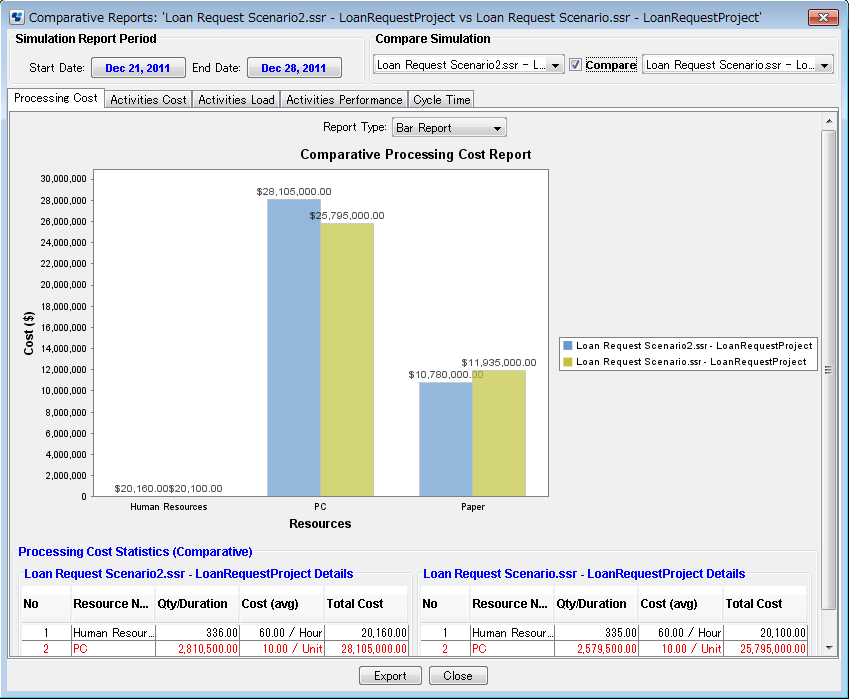

Figure 12.18 Displaying a comparative report
