Some of the Systemwalker Runbook Automation Management Server features are included in Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager, therefore care is required when the Systemwalker Runbook Automation Management Server is used in the same server as Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager.
This section explains the procedure and points to note when the following software and the Systemwalker Runbook Automation Management Server are used in the same server.
Cloud Infrastructure Management Software V1.2.0
Systemwalker Software Configuration Manager V14.1.0A
Note
As a safeguard against errors occurring when the Systemwalker Runbook Automation Management Server is installed, Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager must always be backed up before this procedure is performed.
Order of Installation
The procedure that is used to install the Systemwalker Runbook Automation Management Server in an environment in which Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager have already been installed is explained below.
Systemwalker Runbook Automation Management Server Installation Procedure

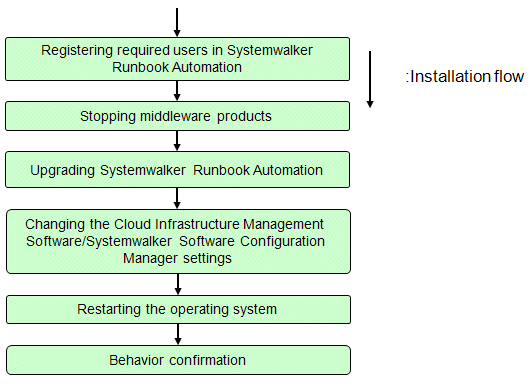

The procedure that is used to install the Systemwalker Runbook Automation Management Server is as follows:
Note
When the Systemwalker Runbook Automation Management Server installation procedure has started, do not operate any other products that are installed in the same environment until the installation is complete.
An empty directory that can be written to as the working area will be required to install the Systemwalker Runbook Automation Management Server. Additionally, the working area data will be required to re-execute after an error has occurred in the installation. For this reason, do not delete the working area data until the Systemwalker Runbook Automation Management Server installation and behavior confirmation are complete.
If the installation cannot be performed, for example because the working area has been corrupted, reinstall Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager then restore the product from the backup.
Then, perform the Systemwalker Runbook Automation Management Server installation procedure.
600MB of free area is required for the Cloud Infrastructure Management Software/Systemwalker Software Configuration Manager installation destination directory. If there is insufficient area for the installation destination directory, extend the installation destination directory area before installing Systemwalker Runbook Automation. Use the following procedure to extend the installation destination directory area:
1) Back up the product
2) Uninstall the product
3) Extend the installation destination directory area
4) Install the product
5) Restore the product
See
Refer to "Backing up or Restoring the Admin Server" in the "Cloud Infrastructure Management Software User's Guide" for information on how to back up and restore Cloud Infrastructure Management Software environment resources. Refer to "Installation and Uninstallation" in the "Cloud Infrastructure Management Software User's Guide" for information on how to install and uninstall the product.
Refer to "Backing up the Admin Server" and "Restoring the Admin Server" in the "Systemwalker Software Configuration Manager Operation Guide" for information on how to back up and restore Systemwalker Software Configuration Manager environment resources. Refer to "Installation" and "Uninstallation" in the "Systemwalker Software Configuration Manager Operation Guide" for information on how to install and uninstall the product.
