This section explains the system configuration necessary when using RHEL-KVM as server virtualization software.
Example of System Configuration
An example system configuration using RHEL-KVM is given below.

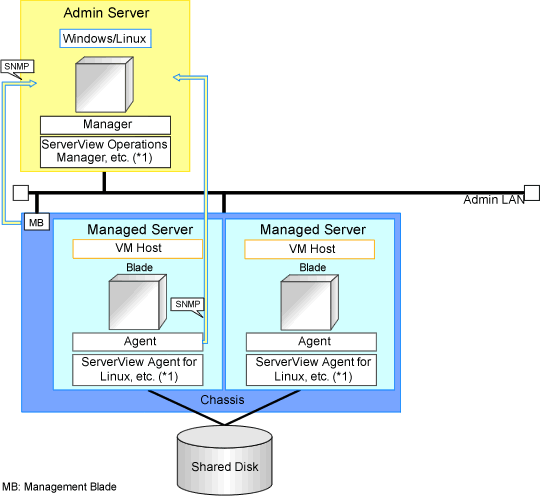

Figure E.15 System Configuration Example Using RHEL-KVM
*1: For details on required software, refer to "2.4.2.2 Required Software".
Network Configuration Example
An example network configuration using RHEL-KVM is given below:

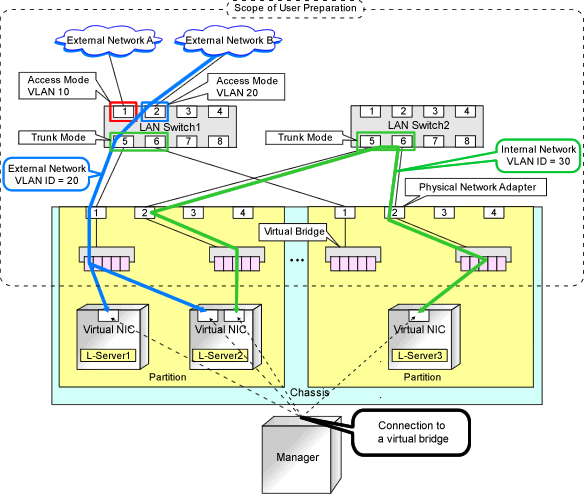

Figure E.16 Virtual Bridge Settings Using Network Resources
L-Server Creation Procedure
The procedure for creating L-Servers is shown below.

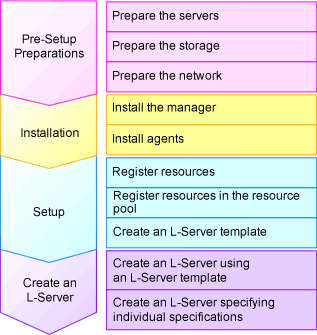

Figure E.17 Resource Orchestrator Setup Procedure
For details on pre-setup preparations, refer to "E.5 KVM".
For details on how to install, refer to "Chapter2 Installation" in the "Setup Guide CE".
For details on how to setup, refer to "C.6 KVM" in the "Setup Guide CE".
For details on how to create an L-Server, refer to "C.6.6 Creating an L-Server" in the "Setup Guide CE".
