Define the following information to be configured on each of the network devices.
Settings for Management
Define configuration information necessary for management.
Device name
Define the name of the managed device.
This name can contain up to 32 alphanumeric characters (upper or lower case), underscores ("_"), hyphens ("-"), and periods (".").
IP addresses used by managed network devices for management purposes
Choose an IP address to be used for communication with the admin server.
SNMP community name
Define the name of the SNMP community to be used when collecting MIB information using the monitoring function of the network device.
This user name can contain up to 32 alphanumeric characters (upper or lower case), underscores ("_"), and hyphens ("-").
Administrator information (user name and password)
Telnet Login User Name
Define the Telnet login user name to be used for logging into the network device.
This user name can contain up to 32 alphanumeric characters (upper or lower case), underscores ("_"), and hyphens ("-").
Telnet Password
Define the password for the Telnet login user name to be used for directly logging into the network device.
This user name can contain up to 32 alphanumeric characters (upper or lower case), underscores ("_"), and hyphens ("-").
Administrator Password
Define the login password for the administrator to be used for logging into the network device as an administrator.
This user name can contain up to 32 alphanumeric characters (upper or lower case), underscores ("_"), and hyphens ("-").
SNMP trap destination
This must be the admin IP address of the admin server.
Monitoring method (PING, SNMP)
Define the monitoring methods for the network devices (firewalls, L2 switches, and L3 switches).
Choose PING for monitoring active/inactive status, and choose SNMP for status monitoring.
It is possible to monitor using only one method or both methods.
Settings for Pre-configuration
Define settings necessary for pre-configuration.
Public LAN Pre-configuration Settings
Check the connection configuration of the LAN ports to be used for the public LAN to be connected with the center switches, and define the necessary settings accordingly.
Admin LAN Pre-configuration Settings
Check the connection configuration of the LAN ports to be used for the admin LAN to be connected with the L3 switches, and define the necessary settings accordingly.

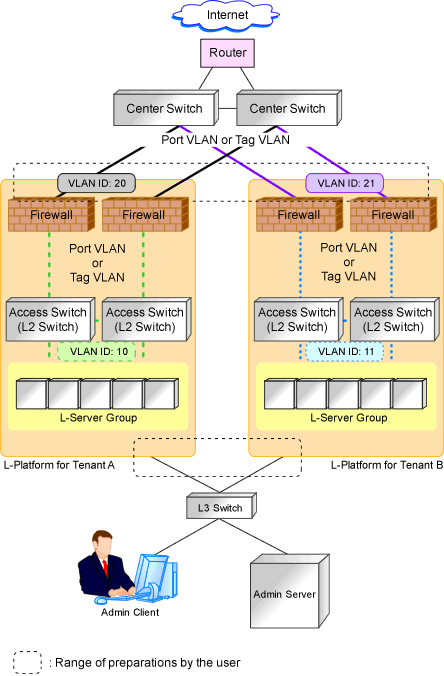

Figure 9.11 Managed Device Pre-configuration Scope
Information
Character limitations vary depending on the network device used.
For specific settings of individual devices, define the settings according to the specifications of the network devices, within the limitations of types and number of characters described above.
The information necessary to be configured based on the public and admin LAN connection configurations also depends on the specifications of network devices.
For details on the specifications for each network device, refer to the manual for each device.
