This chapter explains how to flow of Resource Orchestrator Design and Preparation.
The flows for physical L-Servers and virtual L-Servers are different.

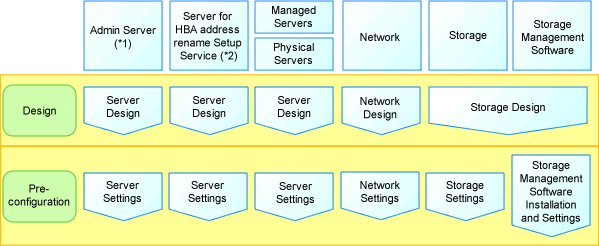

Figure 3.1 Resource Orchestrator installation (Physical L-Server)
*1: When creating a physical L-Server using a blade server, installation of VIOM is necessary.
*2: Necessary when creating a physical L-Server using a rack mount or tower server.

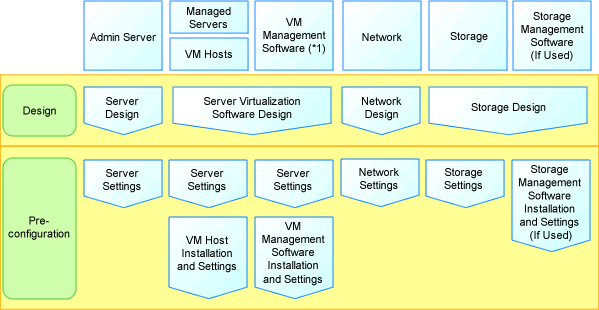

Figure 3.2 Resource Orchestrator installation (Virtual L-Server)
*1: When using RHEL-Xen or KVM or Solaris Containers, VM Management Software is not necessary.
Resource Orchestrator Setup Design
To introduce this product, the following content is designed.
System Configuration Design
For details, refer to "Chapter 4 System Configuration Design".
Defining User Accounts
For details, refer to "Chapter 5 Defining User Accounts".
Defining tenant and Resource Pools
For details, refer to "Chapter 6 Defining Tenants and Resource Pools".
Defining High Availability and Disaster Recovery
For details, refer to "Chapter 7 Defining High Availability and Disaster Recovery".
Define the Server Environment
The server environment managed with the administrative server and this product is decided.
For details, refer to "Chapter 8 Defining and Configuring the Server Environment".
Define the Network Environment
For details, refer to "Chapter 9 Defining and Configuring the Network Environment".
Deciding the Storage Environment
For details, refer to "10.1 Defining the Storage Environment".
Deciding Server Virtualization Software
The server virtualization software managed with this product is decided.
For details, refer to "11.1 Deciding Server Virtualization Software".
Installing and Defining Single Sign-On
The single sign-on environment is decided.
For details, refer to "Chapter 12 Installing and Defining Single Sign-On".
Deciding the Power Monitoring Environment
For details, refer to "13.1 Deciding the Power Monitoring Environment".
Pre-setup Preparations
The advance preparation is necessary before the manager of this product is introduced.
It does according to the following procedures.
Configure the Server Environment
The server environment managed with the administrative server and this product is set.
For details, refer to "8.2 Configure the Server Environment".
Configure the Network Environment
For details, refer to ".
Configuring the Storage Environment
For details, refer to "10.2 Configuring the Storage Environment".
Settings for Server Virtualization Software
The server virtualization software managed with this product is set.
For details, refer to "11.2 Settings for Server Virtualization Software"
Installing and Defining Single Sign-On
The single sign-on environment is set.
For details, refer to "Chapter 12 Installing and Defining Single Sign-On".
Configuring the Power Monitoring Environment
For details, refer to "13.2 Configuring the Power Monitoring Environment".
