ETERNUS SF Storage Cruiser 14.2 Installation Guide

5.2.3 Software installation

1. Log on to the Client installation target system.

   Please log on as the OS administrator (Administrator) of the terminal.

2. Insert the CD-ROM "ETERNUS SF Storage Cruiser 14.2 Client (Windows)", open the CD-ROM drive:\client\Wndows\I32 directory using "Explorer" or another tool, and execute setup.exe.

   Information

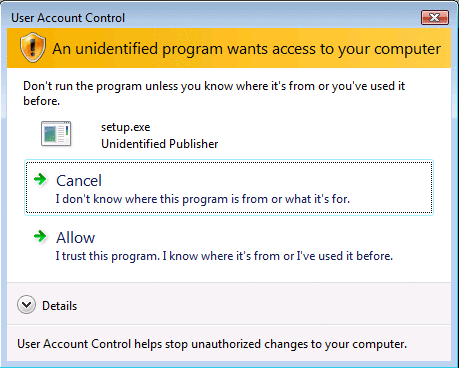

   For using Windows Vista, Windows 7 or Windows Server 2008:

   The following warning dialog may be displayed when the setup.exe is executed. In this case, click "Allow".

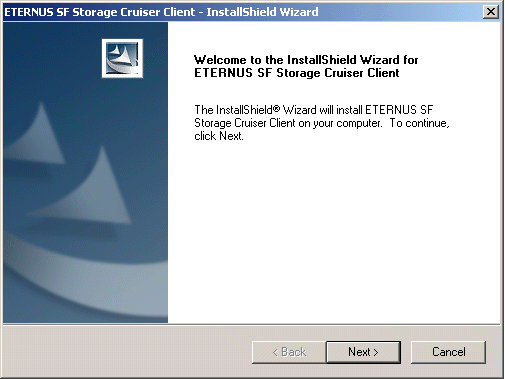

3. When the InstallShield window appears, check the displayed information and then click <Next> button.



   Note

   When the window of Install Shield is minimized, please maximize it by using the task manager. The procedure is as follows.

   1. Push the [Ctrl] + [Alt] + [Del] key and start the task manager.

   2. Select task manager's [Applications] tag.

   3. Select this installer application from the list of the task, and click [Switch To] button.

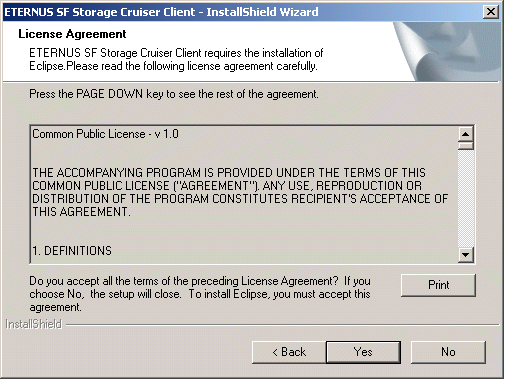

4. Accept the Eclipse's "Common Public License - v1.0".
   In client installation, Eclipse is installed simultaneously.



5. On the "License Agreement" window, accept the license.



6. Specify the installation directory.

   In the event that installation is to be performed to a directory other than the default, please click <Browse> button, and select the directory to install to. When specification of the directory is complete, please click <Next> button.



7. Specify the installation directory.

   To install in a directory other than the default given in step 6, change the default directory by clicking <Browse> button, and select another directory.
   When all directory specifications have been made, if there are no errors in the configuration details, click <Next> button. To change the configuration details, click <Back> button.

   Note

   You can specify installation directory names using any printable ASCII characters other than the following symbols.

   " | : * ? / . < > , % & ^ = ! ;

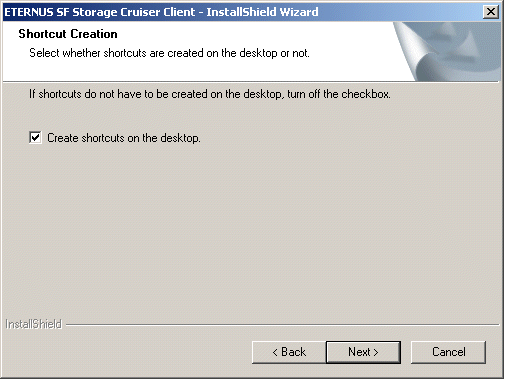

8. Specify whether or not to create a shortcut on the desktop.

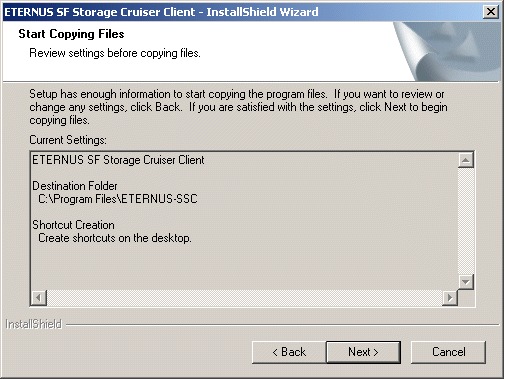

9. Confirm the settings in the "Start Copying Files" window.

   If there are no errors in the configuration details, click <Next> button. To change the configuration details, click <Back> button.



10. The copy process will begin. After the copy process is complete, installation of Storage Cruiser will finish.

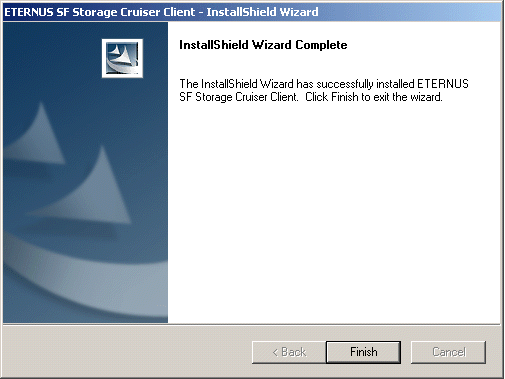

11. After installation is complete, click <Finish> button to exit the InstallShield.



The installation is completed. Continuously, execute the post-installation setup by referring "5.3 Post-installation setup".
