Decide the public directory and the user storage directory for storing common user information.
Public directory
This is the initial directory for connecting to the Interstage Directory Service or Active Directory. A directory under the public directory is used as the Systemwalker authentication repository.
User storage directory
This directory stores information about the users that can use Systemwalker products. This is the base directory for operations such as registering and searching for users.
Tree design examples are shown below.
When the Interstage Directory Service is used as the Systemwalker authentication repository
If the Interstage Directory Service is used as the Systemwalker authentication repository, only the public directory needs to be decided.
The user storage directory will be created under the public directory as "ou=User".
The following example shows how to set up the public directory and the user storage directory.

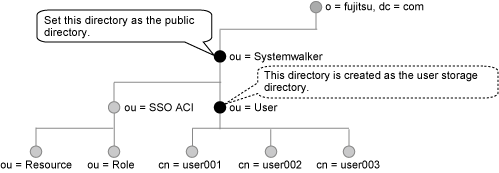

For the kind of configuration shown in the figure below, decide on the public directory as follows:
Public directory: ou=Systemwalker, o=fujitsu, dc=com
The user storage directory will be created as follows:
User storage directory: ou=User, ou=Systemwalker, o=fujitsu, dc=com
When Active Directory is used as the Systemwalker authentication repository
To use Active Directory, decide on both the public directory and the user storage directory.
The following example shows how to set up the public directory and the user storage directory.

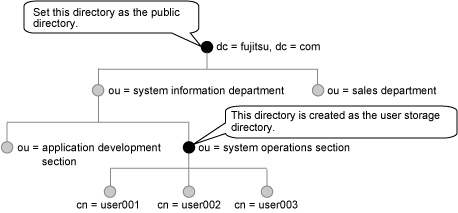

For the kind of configuration shown in the figure below, decide on the public directory and the user storage directory as follows:
Public directory: dc=fujitsu, dc=com
User storage directory: ou=system operations section, ou=system information department, dc=fujitsu, dc=com
