ETERNUS SF XL-DATA/MV V13 User's Guide

4.6 Examples of mftfrecv Transfer Command

This section explains examples when performing data transfers to the Client System using the mftfrecv transfer command on a UNIX/IA server.

• Issuing a transfer request from a UNIX server and receiving data from an IA server
• Issuing a transfer request from an IA server and receiving data from a UNIX server

Issuing a transfer request from a UNIX server and receiving data from an IA server

This section explains mftfrecv command examples when a transfer request is issued from a UNIX server and data is received from an IA server.

• Receiving data when changing separators
• Receiving data when using a filter command on the server system
• Receiving data when using a filter command on the client system

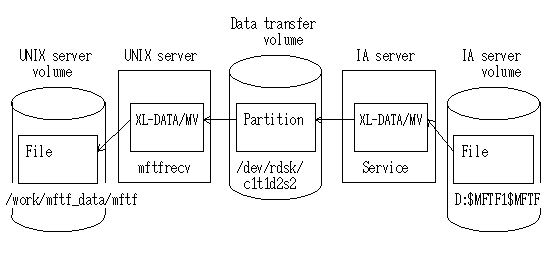

Receiving data when changing separators

The example uses the following file names and account name.

UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser
IA server file name	:	D:$MFTF1$MFTF (Note: "$" means a backslash.)




#!/bin/csh

setenv MFTF_USER WINDOWS
setenv MFTF_DEVICE /dev/rdsk/c1t1d2s2
setenv MFTF_CLLINECODE 0x0a
setenv MFTF_SVLINECODE 0x0d:0x0a

/usr/bin/mftfrecv -t /work/mftf_data/mftf "D:$MFTF1$MFTF"

echo $status

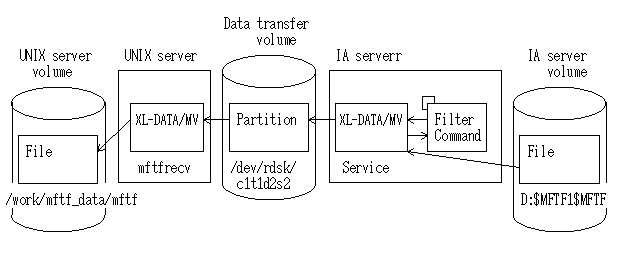

Receiving data when using a filter command on the server system

The example uses the following file names, account name and filter command.

UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser
IA server file name	:	D:$MFTF1$MFTF
Filter command started on the IA server	:	C:$TOOL$MFTF$convert -i (Note: "$" means a backslash.)




#!/bin/csh

setenv MFTF_USER WINDOWS
setenv MFTF_DEVICE /dev/rdsk/c1t1d2s2
setenv MFTF_COMMAND "C:$TOOL$MFTF$convert -i"

/usr/bin/mftfrecv -t /work/mftf_data/mftf "D:$MFTF1$MFTF"

echo $status

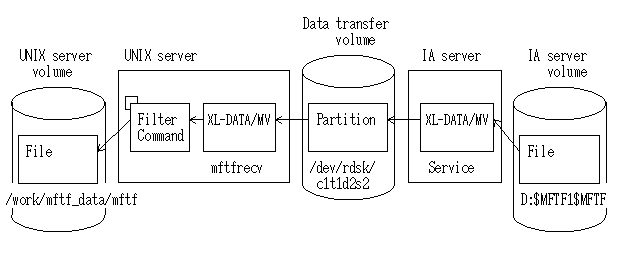

Receiving data when using a filter command on the client system

The example uses the following file names, account name, and filter command.

UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser
Filter command started on the UNIX server	:	/usr/mftf/bin/convert -o /work/mftf_data/mftf
IA server file name	:	D:$MFTF1$MFTF (Note: "$" means a backslash.)




#!/bin/csh

setenv MFTF_USER WINDOWS
setenv MFTF_DEVICE /dev/rdsk/c1t1d2s2

/usr/bin/mftfrecv "D:$MFTF1$MFTF" | /usr/mftf/bin/convert -o /work/mftf_data/mftf

echo $status

Issuing a transfer request from an IA server and receiving data from a UNIX server

This section explains mftfrecv command examples when a transfer request is issued from an IA server and data is received from a UNIX server.

• Receiving data when not using a filter command
• Receiving data when using a filter command on the server system reading the transfer source file
• Receiving data when using a filter command on the client system

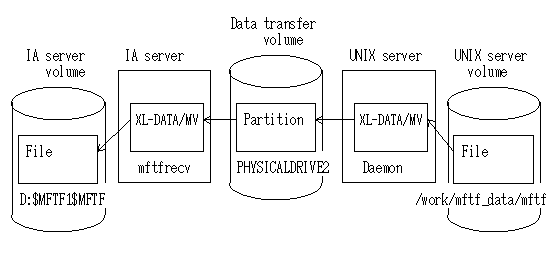

Receiving data when not using a filter command

The example uses the following file names and account names.

IA server file name	:	D:$MFTF1$MFTF (Note: "$" means a backslash.)
IA server account name	:	datamng
UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser




SETLOCAL
SET MFTF_USER=mftfuser
SET MFTF_DEVICE=PHYSICALDRIVE2

mftfrecv.exe -t "D:$MFTF1$MFTF" /work/mftf_data/mftf

if not errorlevel 0 goto senderrexit
echo "mftfrecv Normal End."
goto exit

:senderrexit
echo "mftfrecv Abnormal End."

:exit
ENDLOCAL

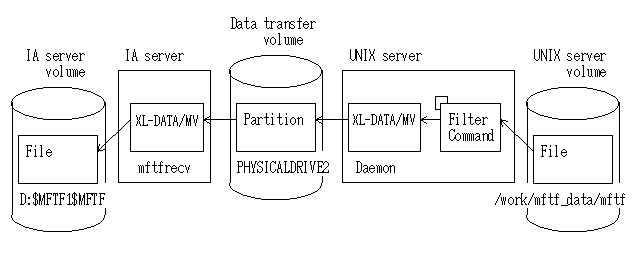

Receiving data when using a filter command on the server system reading the transfer source file

The example uses the following file names, account names and filter command.

IA server file name	:	D:$MFTF1$MFTF (Note: "$" means a backslash.)
IA server account name	:	datamng
UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser
Filter command started on the UNIX server	:	/usr/mftf/bin/convert -i /work/mftf_data/mftf




SETLOCAL
SET MFTF_USER=mftfuser
SET MFTF_DEVICE=PHYSICALDRIVE2
SET MFTF_COMMAND=/usr/mftf/bin/convert -i /work/mftf_data/mftf

mftfrecv.exe -t "D:$MFTF1$MFTF" /work/mftf_data/mftf

if not errorlevel 0 goto senderrexit
echo "mftfrecv Normal End."
goto exit

:senderrexit
echo "mftfrecv Abnormal End."

:exit
ENDLOCAL

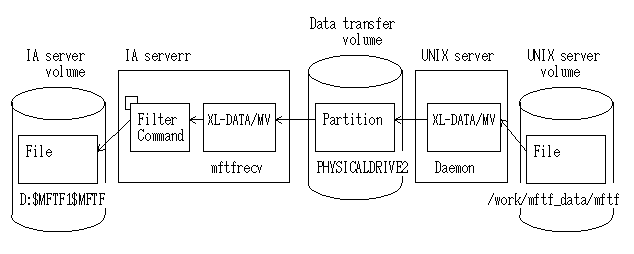

Receiving data when using a filter command on the client system

The example uses the following file names, account names and filter command.

IA server file name	:	D:$MFTF1$MFTF (Note: "$" means a backslash.)
IA server account name	:	datamng
Filter command started on the IA server	:	C:$TOOL$MFTF$convert -o D:$MFTF1$MFTF (Note: "$" means a backslash.)
UNIX server file name	:	/work/mftf_data/mftf
UNIX server account name	:	mftfuser




SETLOCAL
SET MFTF_USER=mftfuser
SET MFTF_DEVICE=PHYSICALDRIVE2

mftfrecv.exe /work/mftf_data/mftf | C:$TOOL$MFTF$convert -o D:$MFTF1$MFTF

if not errorlevel 0 goto senderrexit
echo "mftfrecv Normal End."
goto exit

:senderrexit
echo "mftfrecv Abnormal End."

:exit
ENDLOCAL
