6.4.2 Creating copy groups

When operating multiple copy pairs, create a copy group.

The advantages of copy group are as follows.

• Data base space configured with multiple volumes can be copied with consistency secure.

• Multiple volumes associated with business operation can be copied with consistency secured.

The following is the procedure to create a copy group.

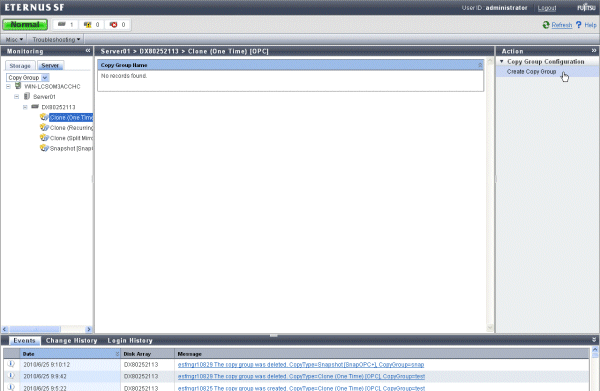

1. Select a copy group type to be created from [Server] tab in [Monitoring] pane.



   Select [Copy Group Configuration] - [Create Copy Group] in [Action] pane.

2. The Create Copy Group wizard is displayed. Select a copy pair according to the wizard.

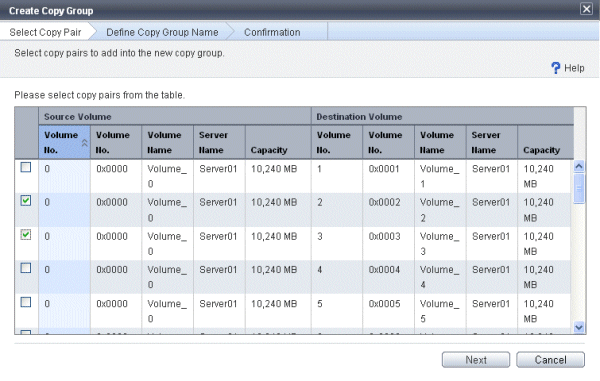

   • In the case of ETERNUS DX60/DX80:

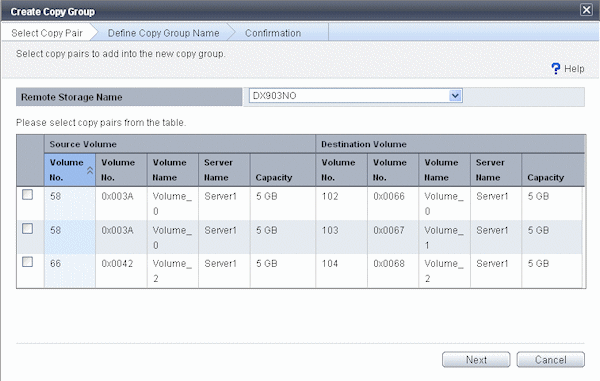

   • In the case of ETERNUS DX90:

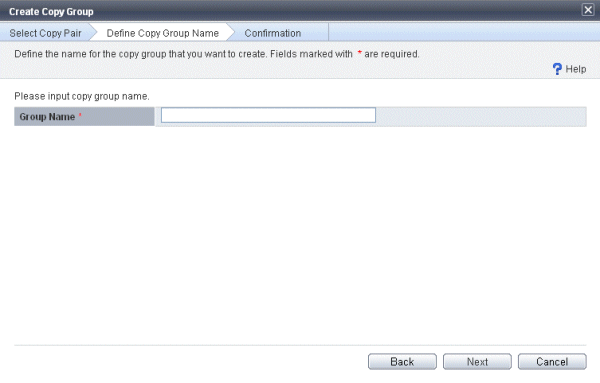

3. Enter the copy group name.



   Point

   Specify for copy group name 64 or less alphanumeric characters including hyphen (-), underscore (_), hash (#) and period. The first character must be an alphabetical letter.

4. The Confirmation screen is displayed. After confirmation, click the [Confirm] button and a copy pair is created.
