ETERNUS SF Express V14.2 User's Guide

5.14.1 Procedure for SNMP Trap reception test

Take the following procedure to perform a SNMP Trap reception test.

• For ETERNUS Disk storage system

  1. Check SNMP Trap from the disk storage systems displayed on the Express Web GUI.
     SNMP Trap destination is automatically specified.

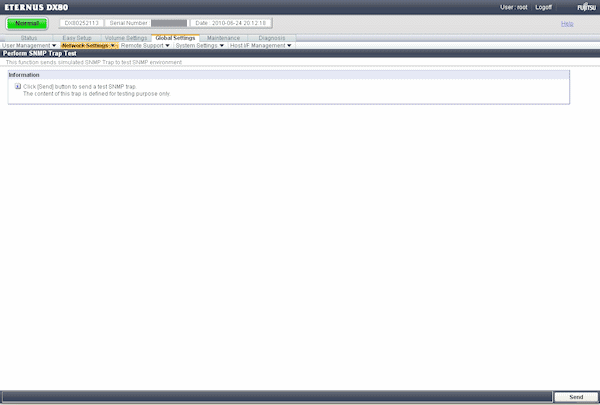

  2. Click the [Send] button on the "Perform SNMP Trap Test" screen of the ETERNUS Web GUI.
     For more information, see the ETERNUS Web GUI manual.

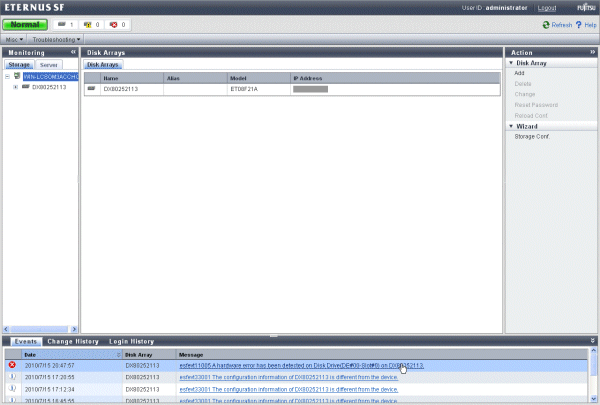

  3. Check "Message" in the [Events] pane of the Express Web GUI.

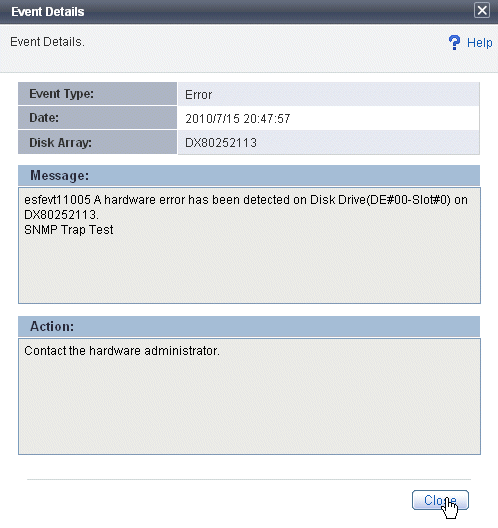

     SNMP Trap Test has been completed successfully if the message including the character string of "SNMP Trap Test" is displayed in the body of the message. In this case, no action is necessary even if "Contact the hardware administrator." is displayed.





• For FibreCAT SX Disk storage system

  Refer to the manual of disk storage system to send SNMP trap.
