File handling
Selecting each menu in [File] from the Correlation window menu bar enables you to read the configuration data displayed in the Correlation window from a file and save the data to a file.
Menu command name | Description |
|---|---|
Open | Reads and displays configuration data. The data displayed in the current Correlation window is cleared. |
Save | Saves the configuration data displayed in the current Correlation window to the currently specified file. |
Save As | Saves the configuration data displayed in the current correlation window in a *.ccw file with a new name. |
CSV preservation of a list | Saves the contents displayed on the End to End list to the specified file in the CSV format. Other applications can use the saved contents because the contents are in the CSV format. |
Selecting [File] - [Print] from the Correlation window menu bar enables the Topology map (frame where the device is displayed) to be printed in the format specified in Page Setup.
As for the size of the form and the layout when printing, a specified value in [Page Setup] is given to priority.
Page Setup

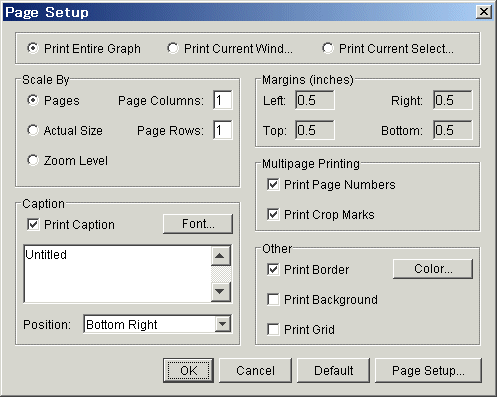

Selecting [File] - [Page Setup] from the Correlation window menu bar displays the following dialog in which you can set a page format for printing:
(Print range)
Print Entire Graph
Prints all objects (including undisplayed objects) on the Topology map.
Print Current Window
Prints only the objects displayed on the Topology map.
Print Current Selection
Prints only the objects currently selected on the Topology map.
[Scale By] (Scaling)
Pages
Prints the map on pages measuring "Page Columns (horizontal) x Page Rows (vertical)".
Note: The map is not printed if 0 is specified for Page Columns and Page Rows.
Actual Size
Prints the map with the default icon size as a reference.
Note: The map is not printed if 0 is specified for Page Columns and Page Rows.
Zoom Level
Prints the map in the currently displayed size.
Note: The map is not printed if 0 is specified for Page Columns and Page Rows.
[Caption] (Title)
Print Caption
Adds the title displayed in the text area.
Font...
Sets the title font.
Note: If the dialog is closed and then opened again after the font has been changed, the font setting is reflected in the text area.
Position
Sets the title position.
[Margins(Inches)] (Margin)
[Multipage Printing] (Setting for printing multiple pages)
Print Page Numbers
Prints the page and the coordinates at which the page is located on the map.
Print Crop Marks
Prints the page including only the edges and border lines of adjacent pages, if they are contained in the screen.
[Other] (Others)
Print Border
Prints the page including the page margin and the border lines of adjacent pages between screens.
Color...
Specifies a border line color.
Print Background
Prints the background. (Unsupported)
Print Grid
Prints ruled lines. (Unsupported)
(Lower button)
Default
The setting of this "Page Setup" dialog is returned to default.
Page Setup...
A common page setting dialog to Windows is displayed.
Overview

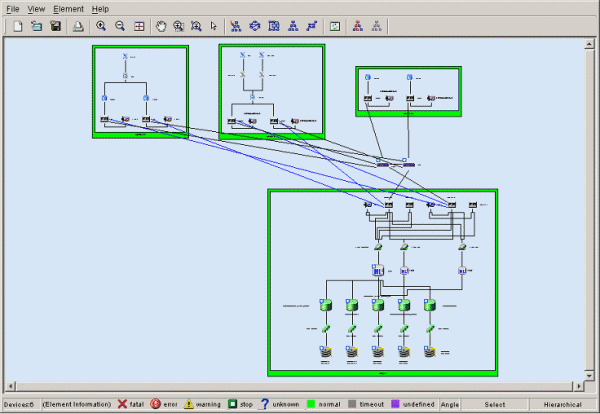

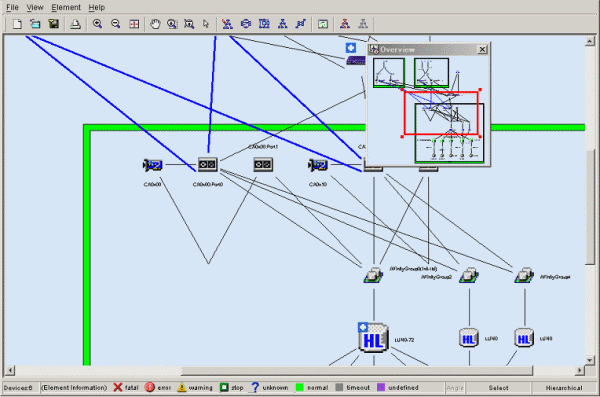

Selecting [View] - [Overview] from the Correlation window menu bar displays the Overview. The Overview displays the whole correlation structure in the window. The Overview linked with the Correlation window. The red frame in the Overview indicates the range of display in the active Correlation window. When the red frame in the Overview is moved, the range of display in the Correlation window is moved accordingly. In addition, when the red frame of the overview is scaled, the range of display in the Correlation window is scaled accordingly.
Marquee

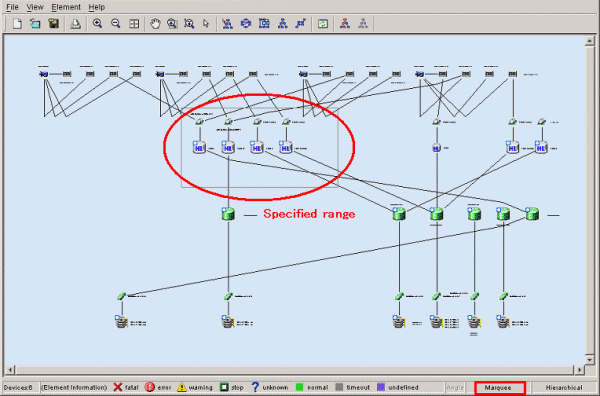

Marquee is used to display only the portion selected in the Correlation window. By selecting [Marquee] on the Correlation window toolbar and specifying the range of display, you can display the selected portion in the entire Correlation window. In the following figure, the range of display of the selected portion is specified with the toolbar Marquee icon selected. However, when the mouse cursor is moved to the table element, it is changed from the [Marquee] to the [Select]. Move the mouse cursor to other than the table element, and select the range again.

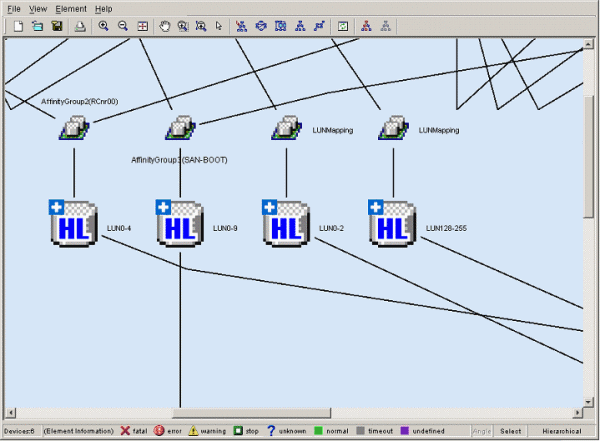

As shown in the following figure, the portion within the specified range is displayed in the entire Correlation window:
InteractiveZoom

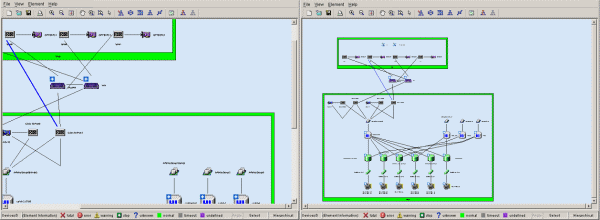

To magnify or reduce the display in the Correlation window, use InteractiveZoom together with the mouse. To magnify the display in the Correlation window, select [InteractiveZoom] on the Correlation window toolbar, and move the mouse down while holding down the left mouse button. Moving the mouse up reduces the display in the Correlation window. The following figure shows magnified and reduced displays in the window. However, when the mouse cursor other than the table element, it is changed from the [InteractiveZoom] to the [Select]. Move the mouse cursor other than the table element.
Call management software

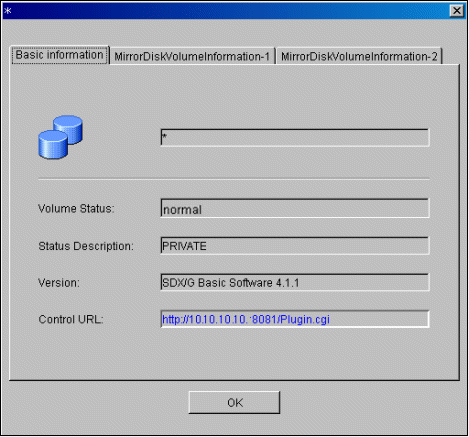

The Management Software for each element can be invoked from the Correlation window. In each property, the Management Software is displayed as follows.
Clicking the URL displayed for "Management Software" displays related Management Software as shown in the following figure:
Layout

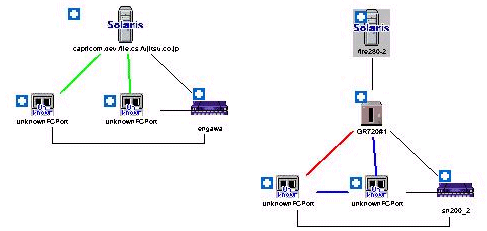

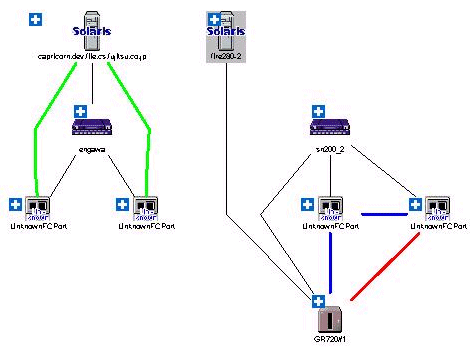

Device icons and element icons can be displayed with different layout logic (algorithms). To use the function, select a layout icon on the toolbar.
The hierarchical layout (Hierarchical) is usually selected. Selecting other layouts, however, enables you to check the relationship between devices from different perspectives.

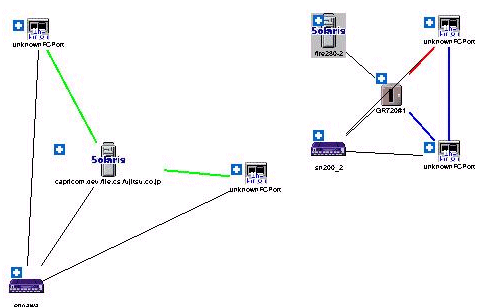

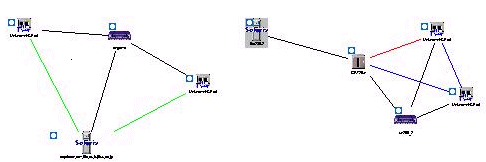

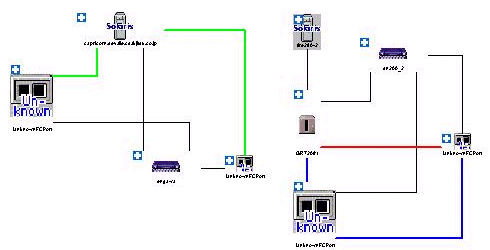

Layout name | Toolbar display | Display example |
|---|---|---|
Hierarchical (Default) |
|
|
Circular |
|
|
Orthogonal |
|
|
Tree |
|
|
Symmetric |
|
|
Orthogonal Line Mode
The element arrangement is displayed by orthogonal line mode when selecting [View] - [Orthogonal Line Mode] from the menu bar of the Correlation window, and the display of the portrait can be shortened. The window displayed in orthogonal line mode is displayed as follows. However, the orthogonal line is not displayed between device icons.
Table Element Display Magnification Setting
When [Table Element Magnification] of [Element] is selected from the menu bar of the Correlation window, the dialog of the table element display magnification setting is displayed. The magnification to which the table element is displayed can be set in this dialog. The display magnification which can be set to the range 1-100. All the table elements displayed in the Correlation window are displayed at the set display magnification.
Moreover, the default of the display magnification is twice. The display magnification set in this dialog is saved in the client. Even if the display magnification of the table element is enlarged, the screen size does not grow. Therefore, even if the display magnification of the table element is enlarged more than a current value, the table element might seem not to be displayed greatly. However, the element icon and an integrated element icons other than the table element are actually displayed small.
Correlation Window Unit Start
In the Correlation window, the function (SaveAs) to save the composition data displayed in a present Correlation window in the file and the function (Open) to read this composition data and display is supported. The saved composition data can be displayed on the window of the client which exists in another place by using this function. However, when the administrative client which exists in another place is not connected with the admin server, the saved composition data cannot be displayed on the window. Therefore, a Correlation window unit start is supported in this software.
When saved composition data (CCW file) is double-clicked, the Correlation window is started. This operation becomes the same operation as the selection of the file from the Correlation window by selecting [File] - [Open] from the menu.
Note
If one Correlation window is opened to display the composition data stored in a file and another Correlation window is opened to display different composition data before retrieval of the composition data for the first window is completed, the first Correlation window may freeze. Do not open more than one Correlation window at the same time to display composition data. If the Correlation window freezes, forcibly close the window by using the task manager. Then, perform Correlation window unit start again.
