Determine the server that performs replication.
The following servers are used to perform replication:
Multiple Storage Servers are unified and operated centrally. The Storage Management Server can also be used as a Storage Server.
However, a Storage Management Server requires AdvancedCopy Manager to run under the Windows, Solaris or Linux operating systems.
AdvancedCopy Manager operations are performed.
AdvancedCopy Manager can run under the HP-UX OS in this case.

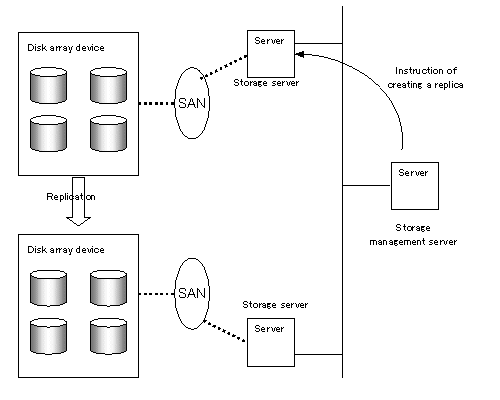

Figure 7.10 Configuration of the servers that perform replication
Note
The following requirements apply when system-to-system replication is performed using the REC function of ETERNUS disk storage systems:
The REC function must be installed in both systems.
Both systems must already be connected to each other using an FC remote adapter (FCRA).
This is a connection that uses an FCRA, in which data flows only from the Initiator side to the Target side. For bi-directional copying, at least two FCRA connections are required.
