The name of a script file for post-processing of a restoration is as follows.
environment-settings-directory\etc\backup\scripts\OpcRestorePost.js
<Shared disk>:\etc\opt\swstorage\etc\backup\scripts\OpcRestorePost.js
1: // AdvancedCopy Manager for Windows
2: // All Rights Reserved, Copyright FUJITSU LIMITED, 2002-2009
3: //
4: // OpcRestorePost.js: Post-Processing Script for swstrestore
5: //
6: // [Parameters]
7: // 1st argument: device name of transaction volume
8: //
9: // [Return Values]
10: // 0: The script ended normally.
11: // 2: The number of the arguments is incorrect.
12: // (3,5): not used, but must not be used because older versions use these values.
13: // 4: An error other than the above occurred.
14:
15: try {
16: // create global objects
17: var WshShell = WScript.CreateObject("WScript.Shell"); // create Shell object
18: var WshEnv = WshShell.Environment("PROCESS"); // create Environment object
19: var fsObj = WScript.CreateObject("Scripting.FileSystemObject"); // create FileSystemObject object
20:
21: // create SwstRestorePostProc object
22: var proc = new SwstRestorePostProc();
23:
24: // do nothing if postprocessing file exists
25: if (fsObj.FileExists(proc.postFileName) == false) {
26: proc.doNothing();
27: }
28: // get postprocessing type
29: else {
30: var postProcType = proc.getPostProcType();
31: switch(postProcType) {
32: case "none":
33: proc.doNothing();
34: break;
35: }
36: }
37:
38: // clear temporary file
39: proc.deletePostFile();
40: SwstQuit(0);
41: } catch (e) {
42: SwstQuit(6);
43: }
44:
45: function SwstRestorePostProc()
46: {
47: // member variables
48: this.tvName = WScript.Arguments.length!=1?SwstQuit(1):WScript.Arguments.Item(0); // device name of transaction volume
49: this.postFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".pre"; // name of postprocessing file
50:
51: // member functions
52: this.getPostProcType= getPostProcType; // self-explanatory
53: this.doNothing = doNothing; // self-explanatory
54: this.deletePostFile = deletePostFile; // self-explanatory
55: }
56:
57: function getPostProcType()
58: {
59: var iomode = 1; // means read-only mode
60: var create = false; // means not to create a file
61: var postFileStream = fsObj.OpenTextFile(this.postFileName, iomode, create);
62: var postProc = postFileStream.ReadAll();
63: postFileStream.Close();
64: return postProc;
65: }
66:
67: function doNothing()
68: {
69: // do nothing
70: }
71:
72: function deletePostFile()
73: {
74: if (fsObj.FileExists(this.postFileName) == true) {
75: fsObj.DeleteFile(this.postFileName);
76: }
77: }
78:
79: function SwstQuit(exitStatus)
80: {
81: switch(exitStatus) {
82: case 0:
83: WScript.Quit(0);
84: case 1:
85: WScript.Echo("[Restore Postprocessing] The number of the arguments is incorrect.");
86: WScript.Quit(2);
87: default:
88: WScript.Echo("[Restore Postprocessing] The script exited abnormally.");
89: WScript.Quit(4);
90: }
91: }
92:
93: function getDataPathName()
94: {
95: return WshShell.RegRead(getSetupInfoKey() + "\\etcPathName") + "\\etc\\backup\\data\\DEFAULT";
96: }
97:
98: function getBinPathName()
99: {
100: return WshShell.RegRead(getSetupInfoKey() + "\\PathName") + "\\bin";
101: }
102:
103: function getSetupInfoKey()
104: {
105: var nodeName = WshEnv.Item("SWSTGNODE");
106: if( nodeName != "" ){
107: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion\\" + nodeName;
108: }
109: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion";
110: }
111:
112: function getPutFileName(deviceName){
113: var fileName;
114: if( isSafeDISKName(deviceName) ){
115: var re = /(\S+)\/(\S+):(\S+)/;
116: fileName = deviceName.replace(re, "$1_$2_$3");
117: }else{
118: fileName = deviceName;
119: }
120: return(fileName);
121: }
122:
123: function getGXDXPX(deviceName){
124: var gXdXpX;
125: if( isSafeDISKName(deviceName) ){
126: var re = /(\S+)\/(\S+):(\S+)/;
127: gXdXpX = deviceName.replace(re, "$3");
128: }else{
129: gXdXpX = deviceName;
130: }
131: return(gXdXpX);
132: }
133:
134: function isSafeDISKName(deviceName){
135: var key = ":g";
136: var s = deviceName.indexOf(key);
137: if ( s < 0 ) {
138: return (false);
139: } else {
140: return (true);
141: }
142: }Point
The backup volume is locked/unlocked not by the script but by the command. Therefore, the restoration pre-processing and post-processing scripts are executed immediately before and after the backup volume is locked/unlocked.

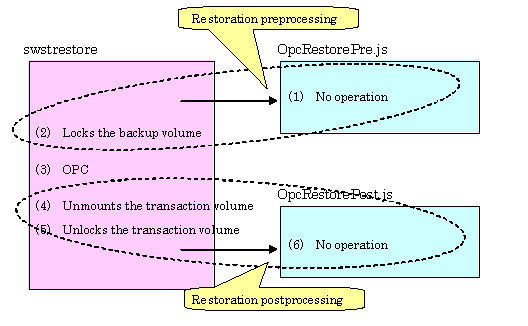

Figure A.6 Restoration
Note
In the restoration pre-processing, to avoid a temporary access conflict with other applications, locking is retried if it cannot complete its operation. If the number of times the command is executed reaches the specified retry count limit, locking ends abnormally. If an abnormal end occurs, a process that is using the backup-restored volume remains active. Stop all applications and services involved or take other appropriate measures so that the volume cannot be used by another process.
Although the retry count limit can be changed by creating a volume locking specification file and resetting the count limit (for details on the file, refer to Backup-restored volume locking specification file), the files do not need to be created if appropriate measures have been taken to prevent other processes from using the target volume during restoration processing execution.
If locking fails in the backup-restored volume restore pre-processing, locking is retried to avoid a temporary access conflict with other applications. The standard retry operations are as follows:
Locking is retried one second after locking fails.
If locking is not successful after 20 retries (that is, a total of 21 locking attempts including the first attempt), then the processing is stopped and the command ends abnormally.
The maximum number of retries (the default value = 20 attempts) and retry interval (default value = 1 second) can be changed by creating a setting file called the backup-restored volume locking specification file for backups. In this setting file, the following instructions can be specified for the backup-restored volume backup pre-processing:
Making invalid all file handles in the volume before locking is retried (this is the forcible locking function)
Note
swstresback (Resource backup command) cannot back up this file . In operations that use this file , the copy command, etc., must be executed to back up the backup-restored volume locking specification file for backups.
Use a name such as the one below to create a backup-restored volume locking specification file for backups.
File name |
|
Examples of settings in the backup-restored volume locking specification file for backup are listed below.
[g1d1p1] LockForceMode=on LockRetryNumber=10 LockRetryInterval=10 [ANY] LockForceMode=off LockRetryNumber=20 LockRetryInterval=100 |
An explanation of how to create a backup-restored volume locking specification file for restores is given below.
Create a section for the volume (the one whose locking operation is to be changed) and create code parameters. In the above example, the g1d1p1 section is created. The three parameters listed in the table below may be changed. Not all of these three parameters need to be coded. Code only the parameters that you want to change. The default value is used for the parameters that are not coded.
To change the default locking operation, create a section called "ANY" and create the code parameters. This enables the locking operation to be changed for all volumes except the volumes explicitly coded in the backup volume locking specification file for backups. In the above example, the locking of all volumes except g1d1p1 depends on the value in the "ANY" section.
RDSTLOCK.INI parameter settings
Key | Explanation |
|---|---|
LockForceMode | If locking of the backup-restored volume fails, locking is retried. This parameter specifies that the volume be dismounted before locking is retried. off (default value) = no dismount before locking is retried on = dismount before locking is retried When the volume is dismounted, all handles opened for the volume become invalid. * If the volume is set in the used state immediately after it is dismounted, then locking may be impossible. |
LockRetryNumber | If locking of the backup-restored volume fails, locking is retried. This parameter specifies the retry count limit. A numeric value ranging from 1 to 10,000 can be specified. |
LockRetryInterval | If locking of the backup-restored volume fails, locking is retried. This parameter specifies the retry interval in milliseconds. A numeric value ranging from 1 to 600,000 (ie, 10 minutes) can be specified. The default value is 1,000 (ie, 1 second). |
