This section explains how to export power consumption data.
Power consumption data can be exported in CSV format for each power monitoring target that is registered in the power monitoring environment.
The exported data can be selected by specifying the desired data types (power and energy), time spans, and sampling rate.
Use the following procedure to export power consumption data.
In the RC console resource tree, right-click a power monitoring target, and select [Export]-[Environmental Data] from the popup menu.
The [Export Environmental Data (target_type)] dialog is displayed.
In the [Export Environmental Data (target_type)] dialog, set the following items.

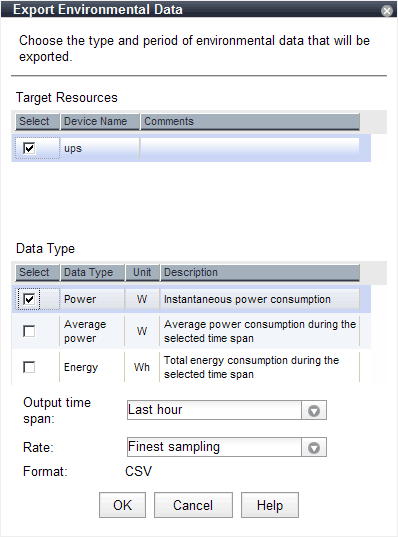

Figure 13.1 [Export Environmental Data (target_type)] dialog
Specify the power monitoring target for which to export power consumption data.
Select the checkboxes of each desired target. More than one target can be selected.
Specify the type of the data to export.
Select the checkbox of each desired data type. More than one data type can be selected.
Select the time span for which to export data from the drop-down menu.
Select one of the following options: "Last hour", "Last day", "Last week", "Last month", "Last year", or "Custom".
When "Custom" is selected, the "Start Date", "Start Time", "End Date", and "End Time" fields must all be specified.
Select the data sampling rate to export from the drop-down menu.
Select one of the following options: "Finest sampling", "Hourly", "Daily", "Monthly", or "Annual".
Click the <OK> button.
In the download dialog that is displayed, specify the name of the file to be downloaded. The data will be exported to the specified file.
Note
Exporting large amounts of data will take time, and may fail if processing exceeds five minutes. In that case, wait for a while before retrying as server-side processing (on the Manager) may not be finished yet.
To avoid such problems, try reducing the amount of exported data by selecting fewer resources and a shorter output time span (respectively in the "Target resources" and "Output time span" options).
Rate | Output time span | Target resources |
|---|---|---|
Finest sampling | Last day | 12 |
Hourly | Last month | 30 |
Daily | Last year | 30 |
Monthly | select "Custom" and specify 5 years | 60 |
Annual | select "Custom" and specify 5 years | 60 |
