ServerView Resource Coordinator VE Setup Guide

Appendix C Port List

This appendix describes the ports used by Resource Coordinator VE.

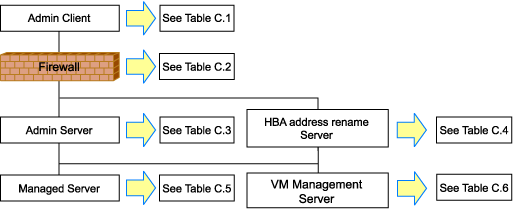

The following figure shows the connection configuration of Resource Coordinator VE components.

Figure C.1 Connection configuration

Resource Coordinator VE ports should be set up during the system configuration of each related server.
Refer to "6.3.1.2 Changing Port Numbers" or "6.3.2.6 Changing Port Numbers" for details on how to configure the ports used by Resource Coordinator VE.
If any of those ports is already used by another service, allocate a different port number.

The following tables show the port numbers used by Resource Coordinator VE. Communications should be allowed for each of these ports for Resource Coordinator VE to operate properly.

Table C.1 Admin Client

Function overview	Source				Destination				Protocol
	Server	Service	Port	Change	Server	Service	Port	Change
RC console	Admin Client	-	Variable value	Not possible	Admin Server	rcxweb	23461	Possible	tcp
ServerView Operations Manager (*1)						http	3169

Table C.2 Firewall

Function overview	Direction	Source		Destination		Protocol
		Server	Port	Server	Port
RC console	One-way	Admin Client	Variable value	Admin Server	23461	tcp
ServerView Operations Manager (*1)					3169

Table C.3 Admin Server

Function overview	Source				Destination				Protocol
	Server	Service	Port	Change	Server	Service	Port	Change
RC console	Admin Client	-	variable	Not possible	Admin Server	rxcweb	23461	Possible	tcp
ServerView Operations Manager (*1)						http	3169
Internal control	Admin Server	-	Variable value	-	Admin Server	- (*2)	3172	Not possible	tcp
		-	Variable value	-		nfdomain	23457	Possible	tcp
		-	Variable value	-		rcxmgr	23460	Possible	tcp
		-	Variable value	-		rcxtask	23462	Possible	tcp
		-	Variable value	-		rcxmongrel1	23463	Possible	tcp
						rcxmongrel2	23464	Possible	tcp
Monitoring and controlling resources	Admin Server	-	Variable value	-	Managed server (Physical OS)	nfagent	23458	Possible	tcp
		-	Variable value	-	Server management unit (management blade)	snmp	161	Not possible	udp
		-	Variable value	-		snmptrap	162	Not possible	udp
		-	Variable value	-	Server management unit (remote management controller)	ipmi	623	Not possible	udp
		-	Variable value	-		snmptrap	162	Not possible	udp
		-	Variable value	-		telnet	23	Not possible	tcp
ServerView Agent (*1)	Admin Server	-	Variable value	-	Managed server	snmp	161	Not possible	tcp udp
	Managed server	-	Variable value	-	Admin Server	snmptrap	162	Not possible	udp
Backup, restore, cloning	Admin Server	-	4972	Not possible	Managed server	-	4973	Not possible	udp
	Managed server	-	4973	Not possible	Admin Server	-	4972	Not possible	udp
		bootpc	68	Not possible		bootps	67	Not possible	udp
		-	Variable value	-		pxe	4011	Not possible	udp
		-	Variable value	-		tftp	69	Not possible	udp
	Admin Server	-	Variable value	-	Admin Server	-	4971	Not possible	tcp
Backup, cloning (collection)	Managed server	-	14974 to 14989	-	Admin Server	-	14974 to 14989	-	tcp udp
Restore, cloning (deployment)	Managed server	-	Variable value	-	Admin Server	-	14974 to 14989	-	tcp udp
Monitoring server power states	Admin Server	-	-	-	Managed server	-	-	-	ICMP (*3)
System Center Virtual Machine Manager	Admin Server	-	Variable value	-	System Center Virtual Machine Manager	-	80	Not possible	tcp
						WinRM	443
VMware ESX, vCenter Server (*4)	Admin Server	-	Variable value	-	Managed server, vCenter Server	-	443	Not possible	tcp

Table C.4 HBA Address Rename Server

Function overview	Source				Destination				Protocol
	Server	Service	Port	Change	Server	Service	Port	Change
HBA address rename setup service	HBA address rename server	-	Variable value	Not possible	Admin Server	rcxweb	23461	Possible	tcp
		bootps	67	Not possible	Managed server	bootpc	68	Not possible	udp
		pxe	4011	Not possible
		tftp	69	Not possible		-	Variable value	-	udp

Table C.5 Managed Server

Function overview	Source				Destination				Protocol
	Server	Service	Port	Change	Server	Service	Port	Change
Monitoring and controlling resources	Admin Server	-	Variable value	-	Managed server (Physical OS)	nfagent rcvat (*5)	23458	Possible	tcp
					Managed server (VMware)	https	443	Not possible	tcp
					Managed server (Xen)	ssh	22	Not possible	tcp
					Managed server (Hyper-V)	RPC	135	Not possible	tcp
						NETBIOS Name Service	137	Not possible	tcp udp
						NETBIOS Datagram Service	138	Not possible	udp
						NETBIOS Session service	139	Not possible	tcp
						SMB	445	Not possible	tcp udp
ServerView Agent (*1)	Admin Server	-	Variable value	-	Managed server	snmp	161	Not possible	tcp udp
	Managed server	-	Variable value	-	Admin Server	snmptrap	162	Not possible	udp
Backup, restore, cloning	Admin Server	-	4972	Not possible	Managed server	-	4973	Not possible	udp
	Managed server	-	4973	Not possible	Admin Server	-	4972	Not possible	udp
		-	Variable value	-		tftp	69	Not possible	udp
HBA address rename setup service	Managed server	bootpc	68	Not possible	HBA address rename server	bootps	67	Not possible	udp
						pxe	4011	Not possible	udp
		-	Variable value	-		tftp	69	Not possible	udp
VMware ESX (*3)	Admin Server	-	Variable value	-	Managed server	-	443	Not possible	tcp

Table C.6 VM Management Server

Function overview	Source				Destination				Protocol
	Server	Service	Port	Change	Server	Service	Port	Change
vCenter Server	Admin Server	-	Variable value	-	vCenter Server	-	443	Not possible	tcp
System Center Virtual Machine Manager	Admin Server	-	Variable value	-	System Center Virtual Machine Manager	-	80	Not possible	tcp
						WinRM	443

*1: Required for PRIMERGY servers.
*2: ServerView Remote Connector Service (required for integration with VIOM).
*3: ICMP ECHO_REQUEST datagram.
*4: Required when running VMware ESX on managed servers.
*5: Required when running SPARC Enterprise.
