This section explains how to export power consumption data.
Power consumption data can be exported in CSV format for each power monitoring device (PDU or UPS) that is registered in the power monitoring environment.
The exported data can be selected by specifying the desired data types (power and energy), time spans, and sampling rate.
Use the following procedure to export power consumption data.
In the power monitoring devices tree on the RC console, right-click the target power monitoring device, and select [Export]-[Environmental Data] from the popup menu.
The [Export Environmental Data] dialog is displayed.
In the [Export Environmental Data] dialog, set the following items.

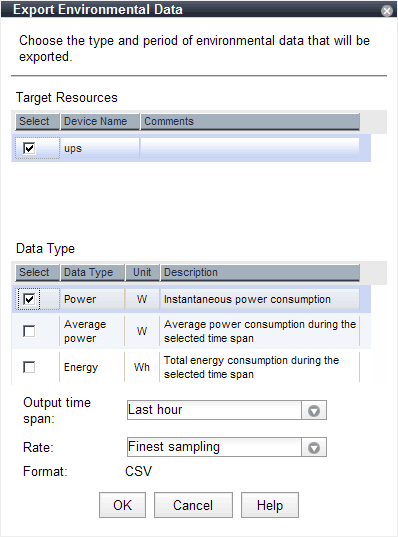

Figure 13.1 [Export Environmental Data] dialog
Specify the targeted device for which to export power consumption data.
Select the checkboxes of each targeted device. More than one device can be selected.
Specify the type of the data to export.
Select the checkbox of each desired data type. More than one data type can be selected.
Select the time span for which to export data from the drop-down menu.
Select one of the following options: "Last hour", "Last day", "Last week", "Last month", "Last year", or "Custom".
When "Custom" is selected, the "Start Date", "Start Time", "End Date", and "End Time" fields must all be specified.
Select the data sampling rate to export from the drop-down menu.
Select one of the following options: "Finest sampling", "Hourly", "Daily", "Monthly", or "Annual".
Click the <OK> button.
In the download dialog that is displayed, specify the name of the file to be downloaded. The data will be exported to the specified file.
