An aggregated link is made of multiple links between the same two resources (ports).

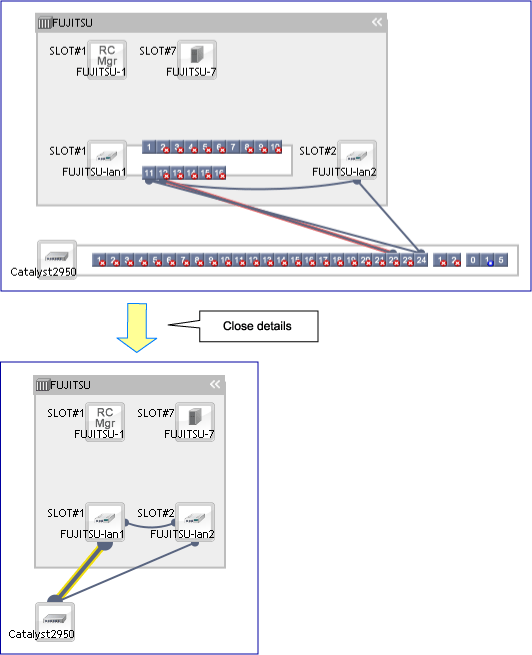

Aggregated links are shown as thick lines in the Network Map. The following diagram shows an example of aggregated link display.
Example
Note
Selecting a displayed resource will focus display on that resource. In such a focus mode, all links that are not directly related to the selected resource will be shown in lighter colors.
