This section explains the system configuration for AdvancedCopy Manager CCM.
With AdvancedCopy Manager CCM, there must be a logical path between the CCM server and the ETERNUS storage system so that the CCM server can issue advanced copy instructions to the ETERNUS storage system. This logical path is referred to as an access path. To create an access path, the ETERNUS storage system must have a logical volume for control purposes.
Connect one of the logical volumes on the ETERNUS storage system to be backed up to the CCM server as an access path.
To execute REC using AdvancedCopy Manager CCM, there must be an access path on either the copy source or the copy destination.

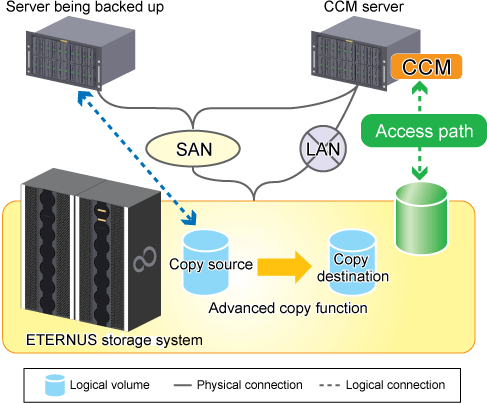

Figure 1.2 Sample configuration where OPC, QuickOPC or EC is executed using AdvancedCopy Manager CCM

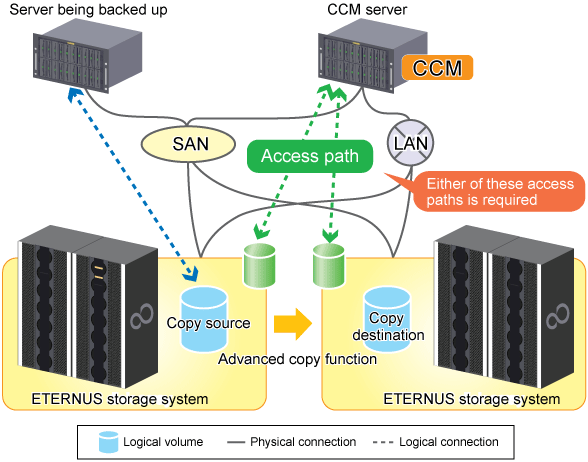

Figure 1.3 Sample configuration where REC is executed using AdvancedCopy Manager CCM
