ETERNUS SFAdvancedCopy Manager 14.0 Operator's Guide forCluster Environment

A.2 Creating a userApplication

Create a userApplication by using the "userApplication Configuration Wizard" of PRIMECLUSTER.

Always specify the standby class for a userApplication.

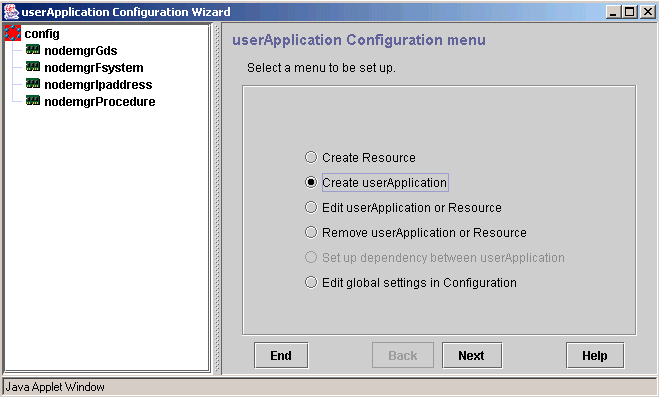

1. Select [Create userApplication] from the top menu of the "userApplication Configuration Wizard".

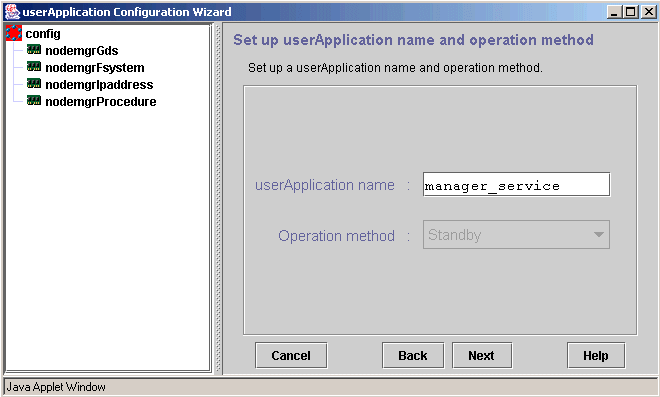

2. Specify a userApplication name and the operation type.

   "manager_service" is specified for the userApplication name in the following example.

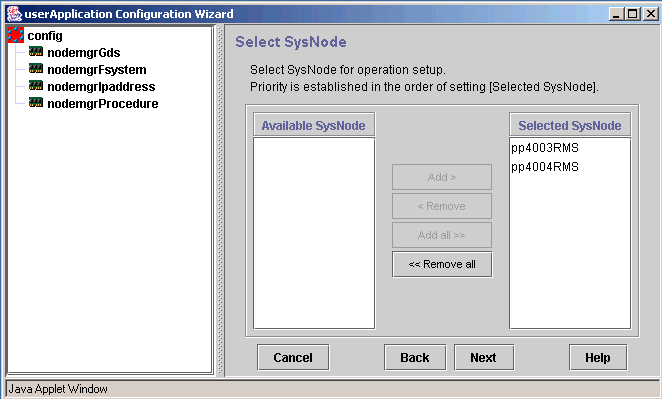

3. Select SysNode to set the cluster application in it.

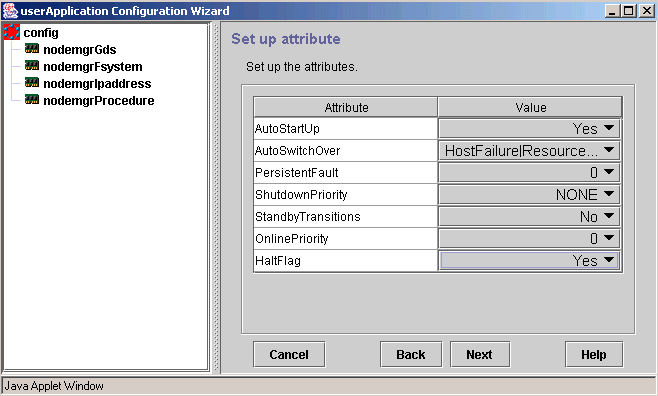

4. Specify the userApplication attributes.

   Specify the userApplication attributes according to the operation type.

   For details on userApplication attributes, refer to the "PRIMECLUSTER Installation and Administration Guide".

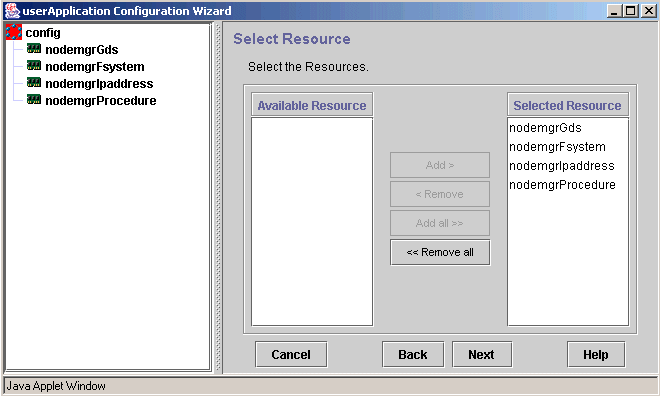

5. Specify the resources used by the userApplication.

   Register resources created for AdvancedCopy Manager.

   The resources created in "A.1 Creating Resources" are specified in the following example.

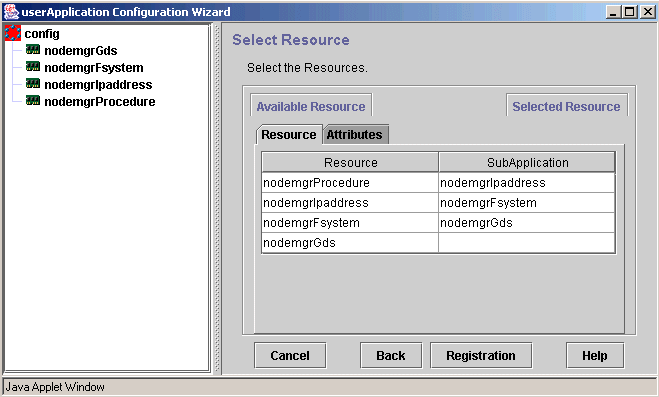

6. Confirm the information registered for the userApplication.

   For details on the attributes, refer to the "PRIMECLUSTER Installation and Administration Guide".
