Constructing Storage Management Server transactions or Storage Server transactions
This section explains how to provide the cluster environment construction for a Storage Management Server transaction or Storage Server transaction on the cluster system of the type with 1:1 standby system.

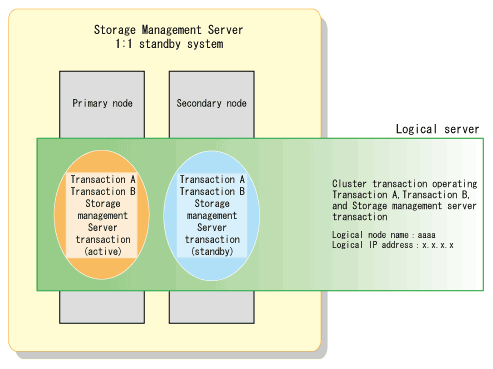

Figure 1.9 Storage Management Server transactions or Storage Server transactions in 1:1 standby cluster system
To build Storage Management Server transactions, install the Manager function of AdvancedCopy Manager on both nodes.
To build Storage Server transactions, install the Agent function of AdvancedCopy Manager on both nodes.
See "Chapter 2 Installation of AdvancedCopy Manager," "Chapter 3 Preparations for Customizing Storage Management Server Transactions, Storage Server Transactions, and Tape Server Transactionss," and "Chapter 4 Customization of Storage Management Server Transactions and Storage Server Transactions" for information on AdvancedCopy Manager installation and customization.
In the above configuration, the AdvancedCopy Manager functions are installed on node 1 and node 2 to construct the Storage Management Server transaction.
Constructing Tape Server transactions
This section explains how to construct a cluster environment for Tape Server transactions in a 1:1 active/standby cluster system.

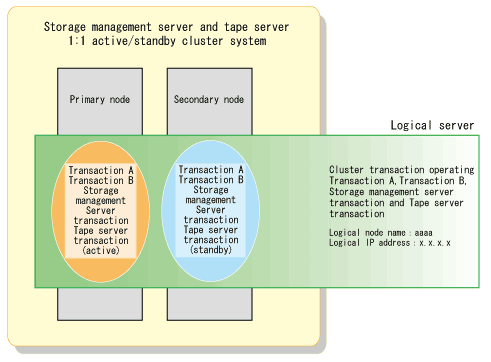

Figure 1.10 Tape Server transactions in a 1:1 standby cluster system
To create Storage Management Server transactions and Tape Server transactions, install AdvancedCopy Manager's Manager function and the AdvancedCopy Manager Tape Manager function on both nodes.
To create Storage Server transactions and Tape Server transactions, install the AdvancedCopy Manager's Agent function and the AdvancedCopy Manager Tape Manager function on both nodes.
To create Tape Server transactions only, install AdvancedCopy Manager's Agent function and the AdvancedCopy Manager Tape Manager function on both nodes.
For details on installing and customizing AdvancedCopy Manager, see "Chapter 2 Installation of AdvancedCopy Manager", "Chapter 3 Preparations for Customizing Storage Management Server Transactions, Storage Server Transactions, and Tape Server Transactions", and "Chapter 6 Customizing Tape Server Transactions".
In the configuration shown in the above diagram, to create both Storage Management Server transactions and Tape Server transactions, both AdvancedCopy Manager's Manager function and the AdvancedCopy Manager Tape Manager function are installed on Node 1 and Node 2.
