A.3.1 Displaying copy inquiry

The following describes the windows displayed for copy status inquiry.

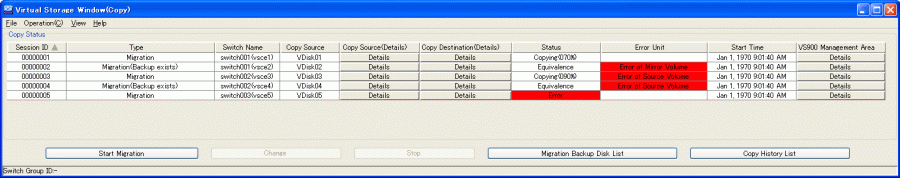

Table A.30 Display information of "Copy Status"

Item

Description

Remarks

Operation buttons for copy processing

[Stop]: Stops copy processing.
[Switch]: Switches the virtual disk composition to the migration destination physical disk. This button is enabled only with "Retain migration backup" selected at migration startup.

Session ID

Session ID at copy processing startup

Type

Copy processing type

"Migration": Indicates auto-switching migration.
"Migration (Backup exists)": Indicates migration in which the user switches the physical disks.
"Replication": Indicates replication.
"ACM": Indicates replication started from ETERNUS SF AdvancedCopy Manager.

Switch Name

Name of the virtualization switch which is performing copy processing

For virtualization switches other than the VS900 Model 200, the switch device name is displayed as “virtualization switch name (host name)”.

Copy Source

Name of the virtual disk where copy processing is being performed

Copy Source (Details)

Details button for the copy source

Copy Destination (Details)

Details button for the copy destination

Status

Status of copy processing

"Copying": Copying data from the copy source to the copy destination.
"Equivalent": Maintaining equivalence of the copy source and copy destination after completing copy processing.

"Standing by for automatic switch": Maintaining the equivalency between the copy source and the copy destination after data copying is completed. (Valid when migration is executed by specifying not to hold the migration backup disk)

"Unusual": An error occurred during data copying.
"Suspend": Suspending data copying.
"Halt Copy": Suspending processing because of an error detected during data copying.
"Error": Error occurred during copy processing.

In cases of "Unusual", display the "Error Unit" item and check error details. Please see the Abnormal end record of "6.4.1.3 [Solaris OS/Linux OS]Copy log" or "6.4.1.4 [Windows]Copy log", and confirm the cause.

Error Unit

Copy error location

"Error of Source Volume": An error occurred on the copy source physical disk.
"Error of Destination Volume ": An error occurred on the copy destination physical disk.
"VS900 Management Area error": An error occurred in a VS900 management area.
"Unknown (other errors)": An error other than the above occurred.
"Unknown (VSC Engine unsupport): An error occurred because an unsupported VSC Engine function is specified.

Hidden by default

VS900 Management Area

Button for displaying detailed information on the VS900 management area used for the session

Hidden by default

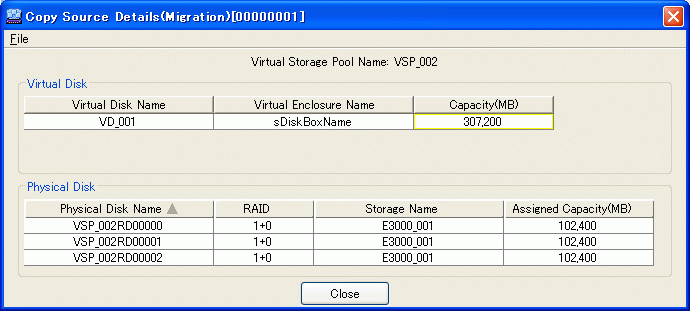

Table A.31 Display information of "Copy Source Details" dialog

Item

Description

Remarks

Virtual Storage Pool Name

Name of the virtual storage pool in which the physical disk is registered

Virtual Disk Name

Name of the virtual disk used for copying

Virtual Enclosure Name

Name of the virtual enclosure in which the virtual disk is registered

Capacity (MB)

Virtual disk capacity

Encryption

Encryption attribute of the virtual disk (encryption, non-encryption)

Hidden by default

Disk type

Disk type of the virtual disk (nearline, online)

Hidden by default

Physical Disk Name

List of physical disks constituting the virtual disk

RAID

RAID level of the physical disk (0, 1+0, 1, 5, 6)

Storage Name

Name of the physical disk storage

Encryption

Encryption attribute of the physical disk (encryption, non-encryption)

Hidden by default

Disk type

Disk type of the physical disk (nearline, online)

Hidden by default

Assigned Capacity (MB)

Capacity assigned from the physical disk concerned to the virtual disk

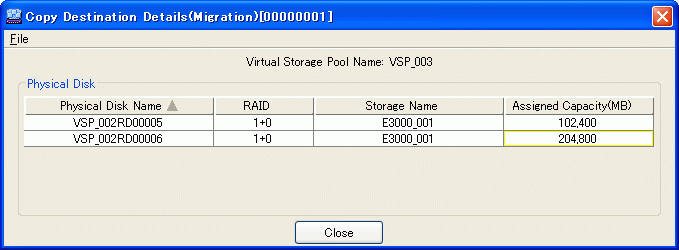

Table A.32 Display information of "Copy Destination Details" dialog

Item

Description

Remarks

Virtual Storage Pool Name

Name of the virtual storage pool in which the physical disk is registered

Virtual Disk Name

Name of the copy destination virtual disk (displayed only for replication)

Virtual Enclosure Name

Name of the virtual enclosure in which the copy destination virtual disk is registered (displayed only for replication)

Capacity (MB)

Capacity of the copy destination virtual disk (displayed only for replication)

Physical Disk Name

List of copy destination physical disks

RAID

RAID level of the physical disk (0, 1+0, 1, 5, 6)

Storage Name

Name of the physical disk storage

Encryption

Encryption attribute of the physical disk (encryption, non-encryption)

Hidden by default

Disk type

Disk type of the physical disk (nearline, online)

Hidden by default

Assigned Capacity (MB)

Capacity assigned from the physical disk concerned to the virtual disk

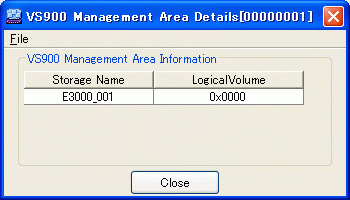

Table A.33 Display information of the "VS900 Management Area Details" dialog

Item

Description

Storage Name

Disk unit name of the physical disk containing a VS900 management area

LogicalVolume

Internal disk unit number of the physical disk containing a VS900 management area
