A.2.1 Displaying the virtual storage pool (root node)

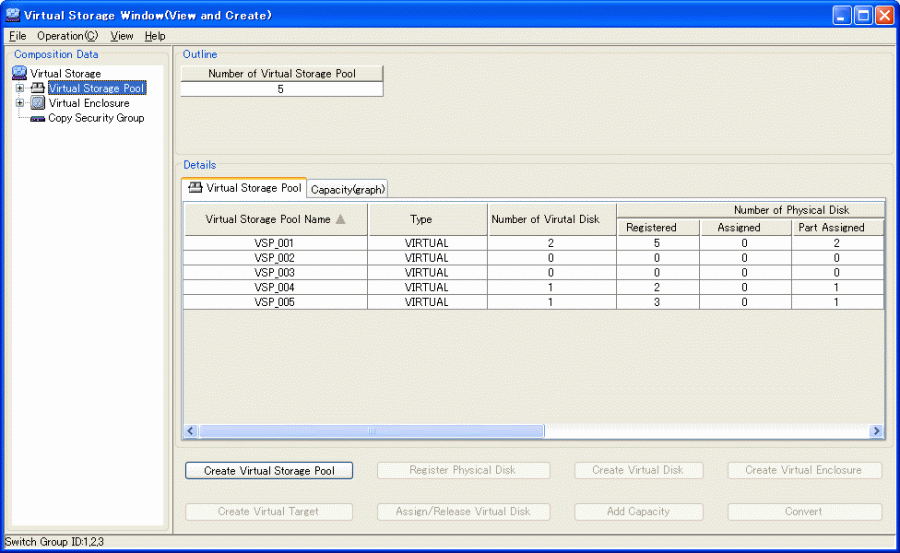

The following describes the window displayed when you select the virtual storage pool (root).

Table A.1 Display information of "Outline area (Virtual Storage Pool [root])"

Item

Description

Number of Virtual Storage Pool

Total number of virtual storage pools created

Table A.2 Display information of "Details area (Virtual Storage Pool [root])"

Item

Description

Virtual Storage Pool Name

Name of the virtual storage pool created

Type

Displays 'VIRTUAL'

Number of Virtual Disk

Number of virtual disks created from the virtual storage pool concerned

Number of Physical Disk

Registered

Total number of physical disks registered in the virtual storage pool

Assigned

Total number of physical disks whose physical space has been assigned to a virtual disk

Part Assigned

Total number of physical disks whose physical space has partially been assigned to a virtual disk

No Assigned

Total number of physical disks whose physical space has not been assigned to a virtual disk

Capacity (MB)

Capacity

Total physical space capacity of physical disks registered in the virtual storage pool

Assigned

Total capacity of physical space assigned to a virtual disk

No Assigned

Total capacity of physical space that has not been assigned to a virtual disk

VS900 Management Area

Total capacity of the VS900 management area for the physical disks registered in a virtual storage pool
