2.2.7 Oracle Database Creation and Setting

Allocate a database

Create a database on the shared disk. The shared disk must be activated.
The files are allocated as follows:

Files		Locations	Note
Init.ora file		Arbitrary	Choose either
Server parameter file		Share	Refer to the following item "Parameter file"
Password file		Share	-
Control files		Share	-
Data files		Share	-
Redo log files		Share	-
Archive log files		Arbitrary	Recommend to be multiplexed, allocating on a shared disk and a local disk.
Flash Recovery Area		Share	-
log files	audit_file_dest	Local	To be gathered surely for trouble investigation, allocate them on a local disk of each node.
	background_dump_dest	Local
	core_dump_dest	Local
	user_dump_dest	Local

• Check if the Oracle user has privileges to write in a shared disk before creating the database.
• If you use ASM (Automatic Storage Management) for Oracle 10g, it is necessary to register the ASM as an RMS resource. Refer to "2.4.2 ASM (Automatic Storage Management)".

Create a database

Operation node

Create a database on the operating node. The database must be accessible from the standby nodes.

Refer to the Oracle manual.

Standby node

Set up the standby nodes in the same configuration (directory creation, file copy, and links) as the operating node.
Under <$ORACLE_HOME>/dbs

Under <$ORACLE_BASE>/admin/<$ORACLE_SID>

Under <$ORACLE_HOME>/network/admin

The access privilege to the directories and files must be also the same as that on the operating node.
If you set where archive log is output on the operating node, it is necessary to set the same on the standby nodes.

The required files on the operating node can be backed up in the tar format with the "cloracpy" command. Refer to "4.4 cloracpy - Create Backup File for Oracle Database Setup".

Mutual standby / N:1 Standby operation

Create a database on an operating node.
The database on the shared disk created on the operating node must be accessible from the standby nodes. This is the same as the other operation modes.

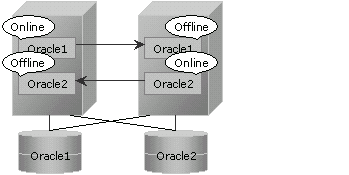

Mutual standby

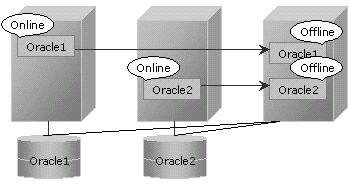

2:1 Standby

Parameter file

The initial parameter setting of LOCAL_LISTENER must be compatible with that of listener.ora and tnsnames.ora. You should also pay close attention to set up Oracle network. If you use the init.ora file, allocate it on either a local disk or a shared disk.

If you use server parameter file, allocate it on a shared disk. If it is not allocated on the shared disk, the settings will be inconsistent between operating and standby nodes.
After you allocate server parameter file on a shared disk, make a symbolic link file to refer to the file on a shared disk in operation and standby both nodes. Set it by either following methods:

-Method of making a symbolic link file to server parameter file on a shared disk.
-Method to write the path of the server parameter file in an init.ora file.

-Method of making a symbolic link file to server parameter file on a shared disk.

$ ln -s <the mount point of a shared disk>/spfile<$ORACLE_SID>.ora <$ORACLE_HOME>/dbs/spfile<$ORACLE_SID>.ora

-Method to write the path of the server parameter file in an init.ora file.

spfile = <the mount point of a shared disk>/spfile<$ORACLE_SID>.ora

If you create a database using DBCA (Database Configuration Assistant) in the Oracle 10g environment, you might not be able to specify where the server parameter file is stored. If this occurs, move the server parameter file to the shared disk after creating the database as follows:

1. Mount the shared disk if it is not mounted. Start userApplication that is created at "2.2.3 userApplication Creation".

2. Move the server parameter file to the shared disk.

   #mv <$ORACLE_HOME>/dbs/spfile<$ORACLE_SID>.ora <shared disk>/spfile<$ORACLE_SID>.ora

3. Set the access to the server parameter file on a shared disk(refer to the above-mentioned example).

Execute step 3 on the operation and the standby both nodes.
You can also use the cloracpy command to execute it on the standby nodes after the operating node.

Network setup

The files are allocated as follows:

Files	Locations	Note
listener.ora	Arbitrary	For placement of the file, refer to the below "information".
tnsnames.ora	Arbitrary	Same as above
<LISTENER>.log	Local

Allocate listener.ora file and tnsnames.ora file on either a local disk or a shared disk. To which allocate them, refer to the following.

- Local disk

When allocate those files on a local disk, it is necessary to edit them of each node. Therefore, the maintenance efficiency decreases compared with the case allocated on a shared disk. In one side, it is possible to gather the files surely when the trouble is investigated because the influence of the state of the mount of a shared disk is not received.

- Shared disk

When allocate those files on a shared disk, it only has to edit them on a shared disk. Therefore, the maintenance efficiency improves compared with the case allocated on a local disk. In one side, when the mount is not done, a shared disk might not be able to gather the necessary files for the trouble is investigated.

When allocate those files on a shared disk, make a symbolic link file under the "$ORACLE_HOME/network/admin/" of each node.

- In the case of listener.ora

$ ln -s <the mount point of a shared disk>/listener.ora <$ORACLE_HOME>/network/admin/listener.ora

- In the case of tnsnames.ora

$ ln -s <the mount point of a shared disk>/tnsnames.ora <$ORACLE_HOME>/network/admin/tnsnames.ora

"\" mark shows that the command line continues to the next line.

listener.ora

If you use Oracle listener switching operation using a logical IP address for standby operation, specify the logical IP address for the IP address of the Oracle listener.

LISTENER =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = <logical IP address>)(PORT = 1521))
)

SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = ora)
(ORACLE_HOME = /u01/app/oracle/product/10.2.0)
(SID_NAME = ora)
)
)

In Oracle 10g or later environment, operating system authentication of Listener must be enabled. There are two methods to enable it:

• Define a parameter in sqlnet.ora file as below.

  LOCAL_OS_AUTHENTICATION_<LISTENER_NAME> = ON



• Not define the "LOCAL_OS_AUTHENTICATION_<LISTENER_NAME>" parameter in sqlnet.ora file. (default)

tnsnames.ora

If the Oracle listener is monitored through tnsping, set up the "tnsnames.ora" file. Then, specify the network service name set for tnsnames.ora in the environment setting of the Oracle listener of PRIMECLUSTER Wizard for Oracle. In that case, ORACLE_SID, host (logical IP address), and port number must be the same as those of the Oracle listener.

Network service name =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = <logical IP address>)(PORT = 1521))
(CONNECT_DATA = (SID = ora))
)

System user password

PRIMECLUSTER Wizard for Oracle accesses and monitors Oracle as the Oracle system user. Therefore, the system user's password must be registered in PRIMECLUSTER Wizard for Oracle. Refer to "4.3 clorapass - Register Password for Monitoring" to register the password.

Check Oracle operation

Check if Oracle is properly running by starting and stopping the Oracle instance and Oracle listener manually.

• The Oracle "TWO_TASK" environment variable must not be changed.
  It is used to add a connect identifier to connect to Oracle then automatically connect to network. In PRIMECLUSTER Wizard for Oracle, network connection is not supported. Users are supposed to connect to Oracle in local connection ("/ as sysdba"). If network connection is required, specify "@connect identifier" instead of using the "TWO_TASK" environment variable at the connecting.
• The processes other than definition of system environment variables must not be added to login.sql of Oracle DBA users.
  SQL can be described in the SQL*Plus profile login.sql. However, it might automatically be executed and affect ongoing operations because Oracle is controlled through SQL*Plus in PRIMECLUSTER Wizard for Oracle.
  It is available to setup the system environment variables to login.sql by SET command.
