Interstage Shunsaku Data Manager Operator's Guide - Microsoft(R) Windows(R) 2000/ Microsoft(R) Windows Server(TM) 2003 - - UNIX -

8.2.2 File Allocation

Decide where the files that comprise Shunsaku will be located.

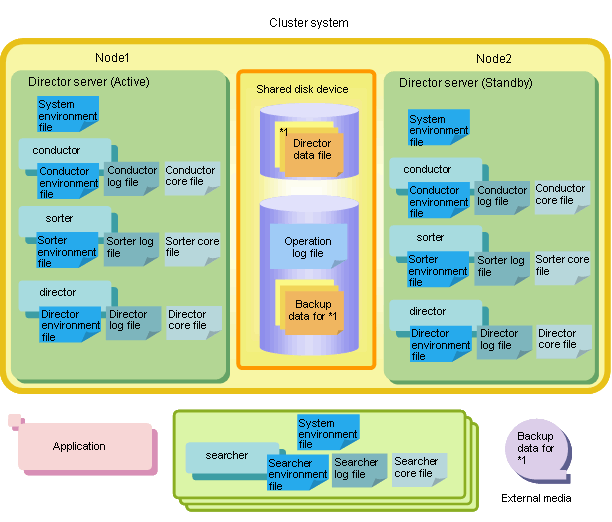

[Figure : Locations for the Files comprising Shunsaku]

With cluster system environments, allocate Shunsaku files to the disks shown in the following table.

Where the location is listed as "Local disk", files with exactly the same content must be placed on the local disks of both the active server and the standby server.

[Table 8-1 Shunsaku File Locations for Cluster System Environments]

Process name	File type	Location
-	System environment file	Local disk
conductor	Conductor environment file	Local disk
	Conductor performance log file	Local disk
	Conductor log file	Local disk
	Conductor Core file	Local disk
Director (*1)	Director environment file	Local disk
	Director performance log file	Local disk
	Director log file	Local disk
	Director data file	Shared disk
	Operation log file	Shared disk
	Director Core file	Local disk
	Backup data for director data files	Shared disk or external media
sorter	Sorter environment file	Local disk
	Sorter performance log file	Local disk
	Sorter log file	Local disk
	Sorter Core file	Local disk
searcher	Searcher environment file	Local disk
	Searcher performance log file	Local disk
	Searcher log file	Local disk
	Searcher Core file	Local disk

*1) If the direct access key definition file is used, allocate it to the same disk where the director environment file is located.
