Interstage Shunsaku Data Manager Operator's Guide - Microsoft(R) Windows(R) 2000/ Microsoft(R) Windows Server(TM) 2003 - - UNIX -

6.1.3 Usage Timing of Monitoring and Logging Function

The monitoring and logging functions is used at the following timing:

• Analyzing the application performance
  • The performance of an application has not achieved the assumed requirement.
  • There is an application that the processing time is slow.
• Monitoring the performance of Shunsaku system periodically
  • Check periodically whether an application has any abnormality (error event, response error)
  • Check periodically the load status for application (once a day) and the changes of response (once a month)

The following diagrams explain the usage timing and the procedure for analyzing the application performance.

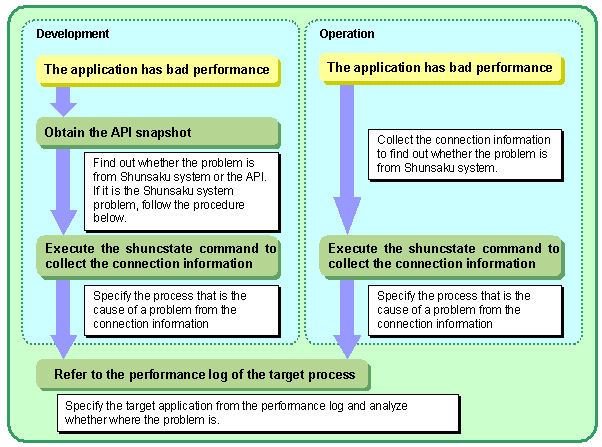

The procedure for analyzing the application performance

Refer to the Application Development Guide for more information on the API snapshot.

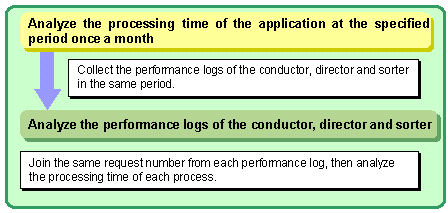

Periodical performance monitoring of Shunsaku system

Refer to Appendix F Output Information of Performance Log for more information on the format of performance log.
