2.1.2 Server Configuration

The server configurations that can construct with Shunsaku are shown below.

• Basic Configuration

  Basic configuration refers to the configuration in which all Shunsaku processes are allocated into 1 server and the configuration in which only the searchers are allocated to a separate server.

  • Systems Operating with a Single Server
  • Systems Operating with Searchers on a Separate Server

• Multi-server Configuration

  Multi-server configuration refers to the configuration in which operates with an additional director server and an additional sort server.

  • Systems Operating with Applications on a Separate Server
  • Systems Operating with an Additional Director Server
  • Systems Operating with an Additional Sort Server

• Admin Server Configuration

  Admin Server refers to the server in which a management console is run on when operating Shunsaku from the management console.

Examples of each configuration are shown below.

Basic Configuration

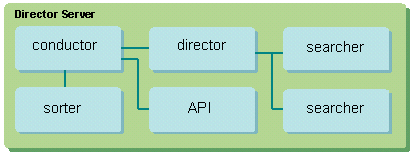

• System Operating with a Single Server

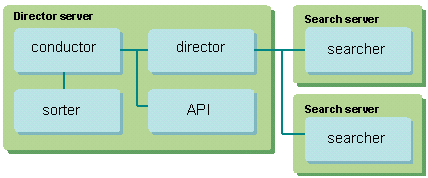

• System Operating with Searchers on a Separate Server



Multi-server Configuration

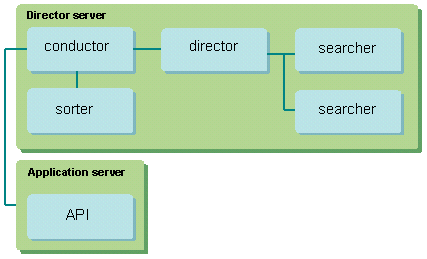

• System Operating with applications on a Separate Server

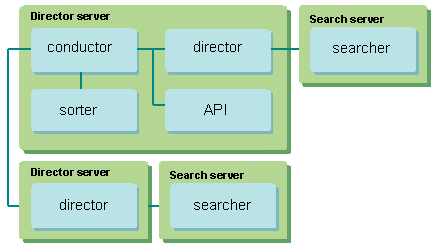

• System operating with an additional direct server

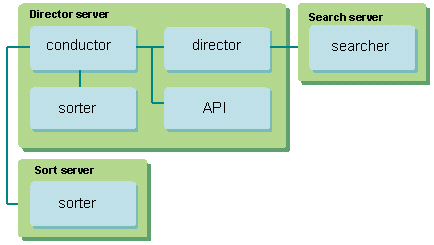

• System operating with an additional sort server



For multi-server configuration, the relation among the time of the backup and recovery and the time in the output information of the log and performance log has to be considered. Therefore, it is necessary to synchronize the time on all server machines.

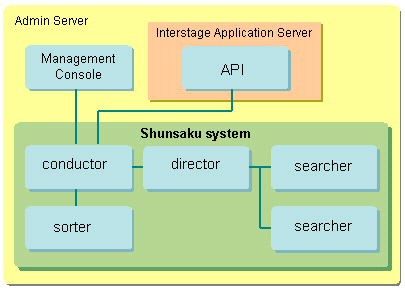

Admin Server Configuration

In this configuration, the same server is allocated for Shunsaku system (the director server) and the Admin Server.

Admin Server configuration cannot be operated with multiple servers.
