Interstage Shunsaku Data Manager Application Development Guide - Microsoft(R) Windows(R) 2000/ Microsoft(R) Windows Server(TM) 2003 - - UNIX -

10.3.2.7 Obtaining Consecutive Groups of XML Documents that Match Conditions

It is often desirable for a Web application to be able to divide up search results into a fixed number of items and to obtain these as consecutive groups.

XML documents can be obtained consecutively by specifying the last position information or the first position information obtained by the preceding search process as the Position property of the ShunSearchRequirement object

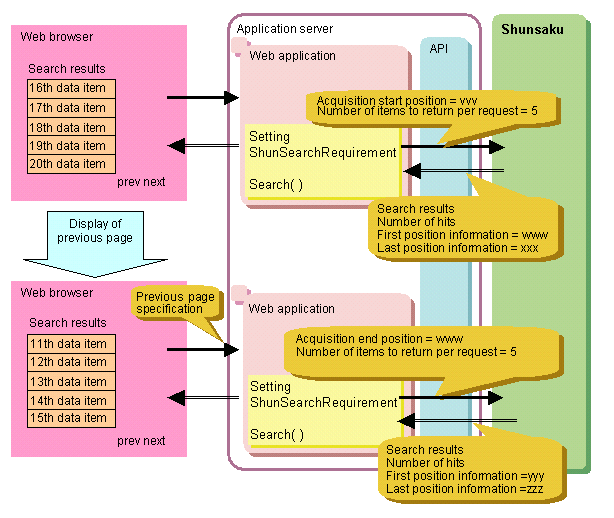

The following diagram shows the process for obtaining consecutive groups XML documents that match conditions.

[Figure 10-11 Flow of the Process for Obtaining XML Documents that Match Conditions Consecutively]

Sample Code for C# .NET

ShunService service = new ShunService();
service.Connect();

ShunSearchRequirement req = new ShunSearchRequirement();
req.QueryExpression = "/document/base/prefecture == 'Sydney";
req.ReturnExpression = "/document/base/name, /document/base/price";
req.SortExpression = "val(/document/base/price/text()) DESC";
req.ReplyNumber = 5;

// First position information
ShunPosition firstPosition = null;
// Last position information
ShunPosition lastPosition = null;

// Change the position settings according to the page to be displayed
// To display the next page, set the direction to "NEXT". To display the previous page, set the direction to "PREV"
switch ( direction ) {
case NEXT:
  // Display the next page                                                           (2)
  req.Position = lastPosition;
  break;

case PREV:
  // Display the previous page                                                       (3)
  req.Position = firstPosition;
  break;

default:
  // Display the first page                                                          (1)
  req.Position = null;
  break;
}

ShunResultSet rs = service.Search( req );                                            (4)
Console.WriteLine ( "[Number of hits] = {0}", rs.HitCount );
int i = 0;
foreach ( ShunRecord record in rs.Records ) {                                        (5)
  ++i;
  Console.WriteLine( "[Resuit] Item No.{0} = {1}", i, record.Data );                 (5)
}

// Store the first position information and last position information
firstPosition = rs.FirstPosition;                                                    (6)
lastPosition = rs.LastPosition;                                                      (6)

service.Disconnect();

Sample Code for VB .NET

Dim service As New ShunService()
service.Connect()

Dim req As New ShunSearchRequirement()
req.QueryExpression = "/document/base/prefecture == 'Sydney'"
req.ReturnExpression = "/document/base/name, /document/base/price"
req.SortExpression = "val(/document/base/price/text()) DESC"
req.ReplyNumber = 5

' First position information
Dim firstPosition As ShunPosition =  Nothing
' Last position information
Dim lastPosition As ShunPosition =  Nothing

' Change the position settings according to the page to be displayed
' To display the next page, set the direction to "NEXT". To display the previous page, set the direction to "PREV"
Select Case  direction
Case NEXT
  ' Display the next page                                                             (2)
  req.Position = lastPosition

Case PREV
  ' Display the previous page                                                         (3)
  req.Position = firstPosition

Case Else
  ' Display the first page                                                            (1)
  req.Position = Nothing

End Select

Dim rs As ShunResultSet = service.Search(req)                                         (4)
Console.WriteLine( "[Number of hits] = {0}", rs.HitCount )
Dim i As Integer =  0
For Each record As ShunRecord In rs.Records                                           (5)
  i += 1
  Console.WriteLine( "[Result] Item No.{0} = {1}", i, record.Data )                   (5)
Next

' Store the first position information and last position information
firstPosition = rs.FirstPosition                                                      (6)
lastPosition = rs.LastPosition                                                        (6)

service.Disconnect()

(1) Display the First Page

Specify the data acquisition position with the Position property. Search processing that displays the first page will start extracting data from the first item, so specify null for the data acquisition position (the position of the first or last data item to be acquired). If null is specified for the data acquisition position, data will be extracted from the first item.

(2) Display the Next Page

Specify the data acquisition position with the Position property. For search processing that displays the next page, use the LastPosition property to obtain the last position information from the previous search, and then specify this position information as the data acquisition position (the acquisition start position). This specification makes it possible to obtain the data that follows the previously acquired data.

(3) Display the Previous Page

Specify the data acquisition position with the Position property. For search processing that displays the previous page, use the FirstPosition property to obtain the first position information from the previous search, and then specify this position information as the data acquisition position (the acquisition end position). This specification makes it possible to obtain the data that follows the previously acquired data.

(4) Execute the Search

For the search, specify and use the ShunSearchRequirement object that the search conditions have been set by the Search method. A ShunResultSet object will be created to hold the results of the search.

(5) Extract the Results of the Search

Extract 1 record of ShunRecord object from the ShunResultSet object. Then extract the XML documents from the ShunRecord object.

The following properties or methods are used to extract XML documents according to the purpose of the extraction. The following table shows the properties or methods that can be used.

[Table 10-8 Properties and Methods that Can be Used to Extract XML Documents]

Property or method	Function
Data property	Extracts XML documents as String objects.
GetDividedData method	Extracts XML documents as a two-dimensional array of String objects.
GetStream method	Extracts XML documents as Stream objects.

Note. The getStringArray method is an effective way to extract search results in text format.

(6) Store the first position information and last position information

Store the first position information using the FirstPosition property.

Store the last position information using the LastPosition property.
