3.1.2 Director Data Backup

Back up the director data at regular intervals. If a disk fault occurs, the backup enables Shunsaku to be recovered to the state when the backup was performed. Save the director data that is backed up by the Management Console on a different disk to that where the director data storage directory is located.

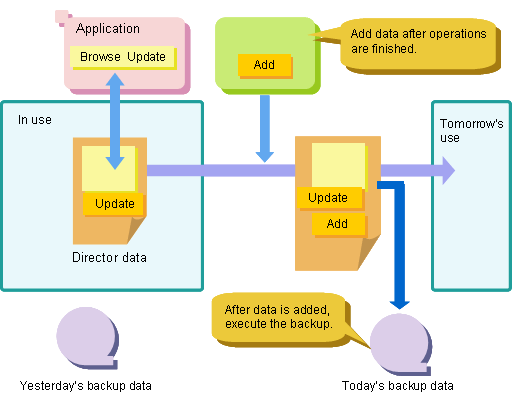

Figure 3-1 shows an example in which the director data is backed up at the end of each day's operation.

[Figure 3-1 Director Data Backup]

Follow the procedures shown below to prepare a backup to be used if a fault occurs.

1. In the navigation frame, click the system name.

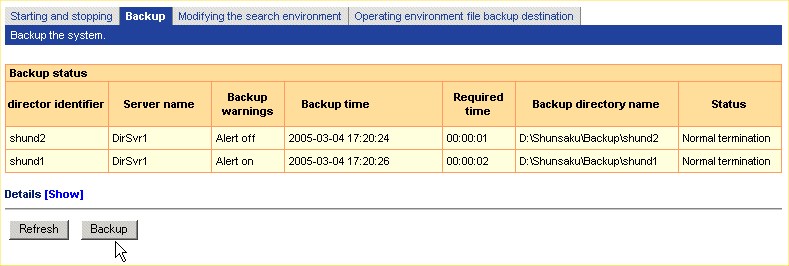

2. In the operations frame of the Management Console, select the Backup tab and click the Backup button. This operation starts backup for all the directors.

   The backup status of each director is displayed in the Status column.





   After backup is started, director data update processing cannot be executed until backup is complete.
