PRIMECLUSTER Installation and Administration Guide 4.2 (Linux for Itanium)

G.1.11 Operation Procedures and Displayed Items for Cluster Application Setup and Modification

Details on incompatibilities

The procedures and displayed items for creating userApplications and for creating and changing procedure resources have been changed.

Changes

1. Creating a userApplication for standby operation

• Before upgrading

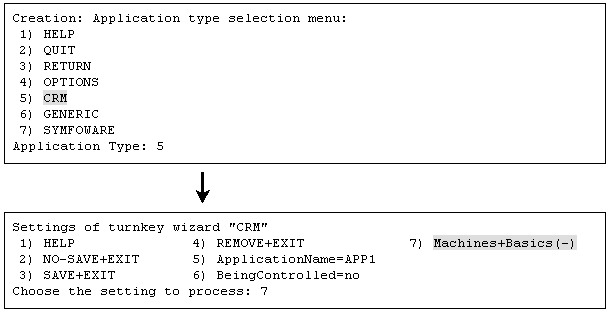

  To create a userApplication for standby operation, select "CRM" from the "Application type selection menu."



• After upgrading

  "CRM" is not displayed in the "Application type selection menu."

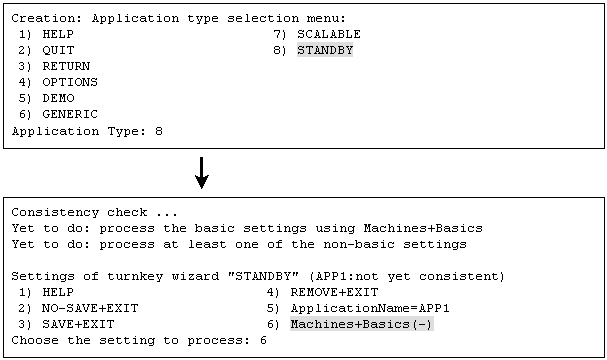

  To create a userApplication for standby operation, select "STANDBY" from the "Application type selection menu."



2. Creating a userApplication for scalable operation

• Before upgrading

  To create a userApplication for scalable operation, select "Controller" from the "Application type selection menu."



• After upgrading

  "Controller" is not displayed in the "Application type selection menu."

  To create a userApplication for scalable operation, select "SCALABLE" from the "Application type selection menu."



3. Creating a procedure resource

• Before upgrading

  To create or change a procedure resource, select "CRM" from the "turnkey wizard CRM" menu, and then select the resource class name.

  Note: Shown below is an example of registering a procedure resource of the BasicApplication class to a userApplication.



• After upgrading

  The "turnkey wizard CRM" menu is not displayed.

  To create or change a procedure resource, select "Procedure:resource-class-name" from the "turnkey wizard STANDBY" menu.

  Note: Shown below is an example of registering a procedure resource of the BasicApplication class to a userApplication.



4. Changing the timeout value of a procedure resource

• Before upgrading

  To change the timeout value, select "Flags[0]=OTtimeout-time" and then select "SCRIPTTIMEOUT."



• After upgrading

  "Flags[0]=OTtimeout-time" is not displayed.

  To change the timeout value, select "TIMEOUT."



5. Changing the priority in a resource class of a procedure resource.

• Before upgrading

  To change the priority in a resource class, select "Priority[0]=priority."



• After upgrading

  "Priority[0]=priority" is not displayed.

  To change the priority in a resource class, select "PRIORITY."



Note

None.
