PRIMECLUSTER Installation and Administration Guide 4.2 (Linux for Itanium)

7.3.5 Viewing Detailed Resource Information

Use RMS graphs to display detailed resource information for each cluster application.

There are four types of RMS graphs. Each type can be displayed from the menu when you right-click an object on the RMS tree.

• Full graph

  Displays the configuration of the entire cluster system in which RMS is running.

• Application graph

  Shows all objects used by the specified application. You can check the details of the specific object using this graph.

• Sub-application graph

  Lists all sub-applications used by a given application and shows the connections between the sub-applications.

• Composite sub-applications graph

  Shows all sub-applications that the application depends on directly or indirectly.

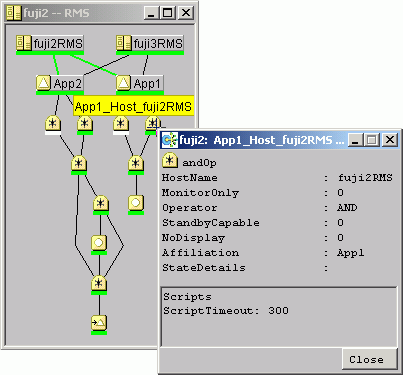

RMS graphs

If you left-click the target object, the attributes of the object will be displayed on a pop-up screen.

See "5.6 Using RMS graphs" in "PRIMECLUSTER Reliant Monitor Service (RMS) with Wizard Tools Configuration and Administration Guide."
