PRIMECLUSTER Global Link Services Configuration and Administration Guide: Redundant Line Control Function 4.2 (for Linux)

7.8 dsppoll Command

[Name]

dsppoll - Displaying the monitoring status

[Synopsis]

/opt/FJSVhanet/usr/sbin/dsppoll

[Feature description]

The dsppoll command displays the current monitoring status of monitoring information created using the hanetpoll command..

[Display format]

The following shows the display format used when no option is specified.

Display				Contents
Polling Status	ON			The monitoring function is enabled.
	OFF			The monitoring function is disabled.
interval (idle)	interval			In seconds the monitoring interval in the stationary status.
	(idle)			In seconds the wait time that elapses after monitoring starts and before the HUB links up.
Times				The monitoring count.
Repair_time				The recovery monitoring interval in seconds.
FAILOVER Status	YES			Node switching is performed when the virtual interface is registered in the cluster resource.
	NO			No node switching is performed.
Status		ON		Monitoring is in progress.
		OFF		Monitoring is stopped.
Name				: The name of a virtual interface to be monitored.
Mode	d			NIC switching mode (logical IP address takeover function)
	e			NIC switching mode (physical IP address takeover function)
Primary Target/ Secondary Target				Monitoring status in Primary/Secondary monitor-to IP address or a host name and parenthesis.
				(ON)	Monitoring is in progress.
				(WAIT)	Waiting is in progress.
				(FAIL)	Monitoring failed (monitoring is stopped).
				(STOP)	Unused.
HUB-HUB			WAIT	HUB-to-HUB monitoring has stopped.
			ACTIVE	HUB-to-HUB monitoring is operating.
			FAIL	HUB-to-HUB monitoring has failed.
			OFF	HUB-to-HUB monitoring is unused.

[Related commands]

hanetpoll

[Notes]

• If no option is specified, this command can be specified for a virtual interface in NIC switching mode (operation mode "d" or "e").

[Examples]

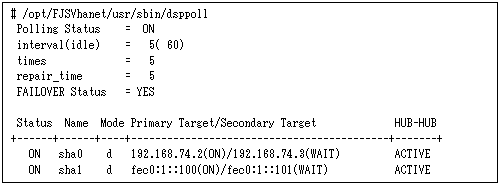

The following shows an example of displaying all the monitoring statuses properly defined using the hanetpoll command.

# /opt/FJSVhanet/usr/sbin/dsppoll
