| Chapter 1 Overview |
The redundant line control function provides a high-reliability communication infrastructure that supports continuous transmission in the event of a network path or card failure by making transmission routes redundant with multiple NIC (Network Interface Cards).
GLS enables the following network control methods:

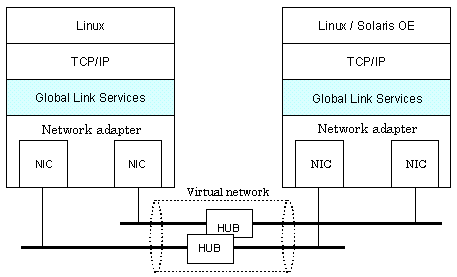

In Fast switching mode, a redundant transmission route between Linux servers or Solaris servers in the same network is used so that the total amount of data transferred can be increased, and that the data communication can be continued even if the transmission route fails. It also enables higher levels of throughput through redundant transmission routes. GLS performs early failure detection, so when one transmission route fails, the failed route will be cut off then the system will be operated on a reduced scale. The compatible hosts are PRIMEQUEST, PRIMERGY, PRIMEPOWER, GP7000F, GP-S, and Fujitsu S series.
Note that fast switching mode cannot be used to communicate with hosts on the other networks beyond the router.
Moreover, you can use a single transfer path. For details, refer to "2.2.5 Configuring single physical interface".

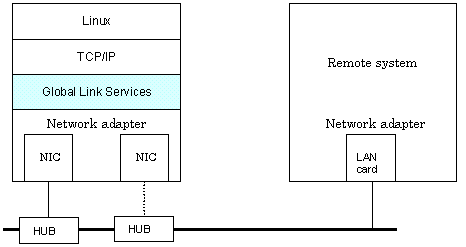

In NIC switching mode, redundant NICs (LAN cards) are connected to each other on the same network and used exclusively. If one transmission route fails, ongoing communications will be switched to the other transmission route. There are no restrictions on remote systems to communicate with.
Note that NIC switching mode can be used to communicate with any hosts on the other networks beyond the router.
Moreover, you can use a single physical interface. For details, refer to "2.2.5 Configuring single physical interface".
