3.2.13 Setting Up and Testing the AP-Net

This section describes how to perform the Setting Up and Testing the AP-Net operation.

The CE performs Setting Up and Testing the AP-Net.

Displaying Option Menu

Operation

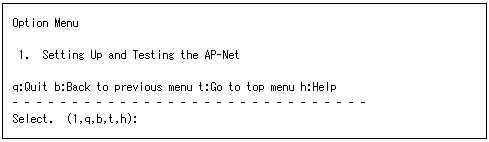

1. From the CUI menu, select [Option Menu].

   The Option menu opens.



Setting up the AP-Net

Operation

1. From the Option Menu, select [Setting Up and Testing the AP-Net].

   The AP-Net menu opens. (This menu is not included in the Machine Administration menu.)

2. Select the following items from the menu:
   • When the version number of the AP-Net basic software is 1.0.2:

     Select [Connection and test of AP-Net case].

   • When the version number of the AP-Net basic software is 1.1:

     Select [Initial setup].

3. Select [Initialize and test of AP-Net case] from the menu.
4. From this point, perform operations according to the menu.
5. Check the setting.

   If an error is detected, perform the setting again.

Testing AP-Net connection

Operation

1. From the Option Menu, select [Setting Up and Testing the AP-Net].

   The AP-Net menu opens. (This menu is not included in the Machine Administration menu.)

2. Select the following items from the menu:
   • When the version number of the AP-Net basic software is 1.0.2:

     Select [Connection and test of AP-Net case].

   • When the version number of the AP-Net basic software is 1.1:

     Select [Initial setup].

3. From the menu, select [Connection test of MSC-RTC].
4. From this point, perform operations according to the menu.

   When the AP-Net connection test finishes, [All tests ended (return)] appears.
