Machine Administration Guide 2.6

3.1.15 Setting Management Server Logging

This section describes how to operate the Setting Management Server Logging menu.

Displaying the GUI menu

Operation

1. Click [Machine Administration Environment] on the GUI menu.

   The next level of the menu appears.



2. Click [Setting Management Server Logging] on the GUI menu.

   The next level of the menu appears.



Displaying and Setting Management Server Logging Interval

Operation

1. Click [Displaying and Setting Management Server Logging Interval] on the GUI menu.

   The [Displaying and Setting Management Server Logging Interval] screen appears.



2. To change [time interval], enter a value.

   Specify the time interval for collecting logs in the range of 10 to 600 seconds.

   The default is "60 seconds."

3. Click the [Complete] button.

Display and Setting the Log Size

Operation

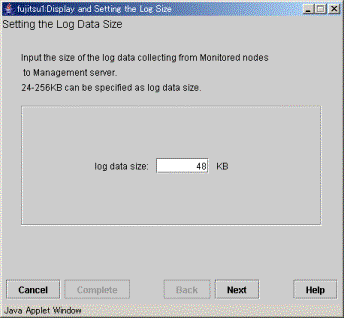

1. Click [Display and Setting the Log Size] on the GUI menu.

   The [Display and Setting the Log Size] screen appears.



2. To change [log data size], enter a size.

   Specify the size in the range of 24 to 256 KB.

   The default is 48 KB.

3. Click the [Complete] button.

Resetting the Log

Operation

1. Click [Resetting the Log] in the GUI menu.

   The [Resetting the Log] screen appears.



2. Click the [Complete] button.

   The machine administration monitoring log on the management server is cleared.



   To use the same IP host name after replacing the device of the node to be monitored, clear the log. If the log is not cleared, the log information after device replacement is added to the machine administration monitoring log used before device replacement.
