Machine Administration Guide 2.6

3.1.1.1 Starting Machine Administration Menu

This section describes how to start the CUI menu and GUI menu.

CUI menu

Operation

1. Make sure that the command prompt is displayed on the UNIX screen.
2. Enter the following start command:

   # /usr/sbin/FJSVmadm/madmin

   The top menu of the CUI menu opens.

   See section 4.11, "madmin (1M)."

GUI menu

Operation

1. Enter http://<host-name>:8081/Plugin.cgi as the address in the browser window.

   The Web-Based Admin View login window opens.





   If the IP address of the server was changed, this setting must be changed as well. For information on the method of changing this setting, see the Section "Changing an IP address on the Public LAN" in the Web-Based Admin View Operation Guide.



   About <host-name> entered as the address in the browser window

   If Web-based Admin View cannot be started although a host name was entered in <host-name>, enter the IP address of the business LAN on the secondary management server directly.

2. Enter your user name and password and click the [Confirm] button.

   The Web-Based Admin View menu window opens.



3. Select "Machine Administration" from the Web-Based Admin View menu window.

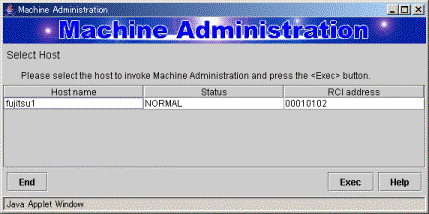

   The Select Host window opens.



   <Explanation of the display>

   The Host names, status, and RCI addresses are listed which the management server monitors.

   The following keywords may appear in the "Status" column:

   FATAL : Fatal error

   WARNING: A warning-level error or preventive maintenance event occurred.

   NORMAL : Normal

   DOWN : The host is down or communication with the host is not possible.

   UNKNOWN: The status is unknown



   • If the appropriate host name is not recognized because it was changed, "DOWN" appears in the Status column.
   • To delete a host name select the host name that you want to delete and click the [Exec] button.

     The selected host name is deleted from the list.

   • If the main unit to be monitored does not support the GUI menu (Web-Based Admin View), "DOWN" or "UNKNOWN" appears in the Status column and the GUI menu is not displayed. In this case, the GUI menu cannot be displayed.
4. Click the "host name" for the host that you want to monitor.
5. Click the [Exec] button.

   The GUI menu of the selected host opens.
