5.2 Adding configuration for Cluster system

In addition to configuring standard environment, configuration of takeover virtual interface and cluster environment is required for the cluster system.

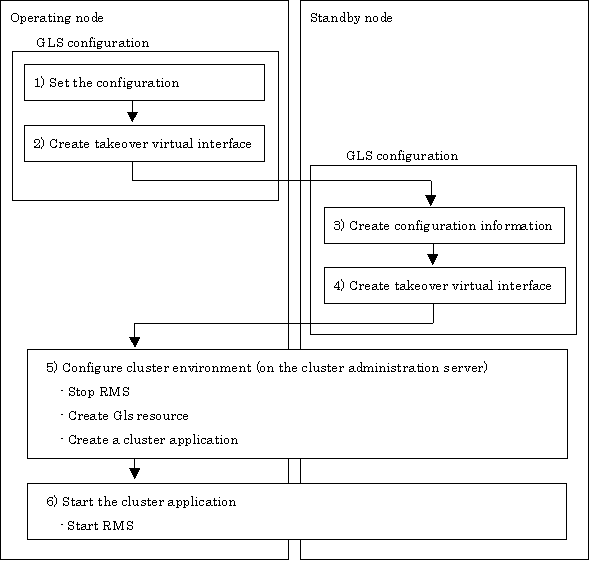

Figure 5.29 shows a flow chart of configuring additional cluster environment for 1:1 Standby Operation. For mutual standby and N:1 operation standby, follow the steps from "1) Set the configuration information" to "5) Setup the cluster environment" for the number of necessary node. Refer to "Appendix B Examples of Setting Up".

[Figure 5.29 Flowchart for adding configuration for cluster system]

Redundant Line Control Function provides commands for defining cluster operations. To execute these commands, cluster system must be installed in the system. Table 5.3 lists the cluster definition operation commands.

[Table 5.3 Cluster definition operation commands]

Type	Command	Function	Authority
Configuration of a virtual interface and the takeover resources.	/opt/FJSVhanet/usr/sbin/hanethvrsc	Registration/deletion/display of a virtual interface and the takeover resources.	Super user

---

5.2.1 Creating configuration information

5.2.2 Creating Takeover virtual interface

5.2.3 Configuring cluster system

5.2.4 Starting an userApplication
