| Chapter 5 GLS operation on cluster systems | > 5.1 Outline of Cluster System Support | > 5.1.3 Cascade | > 5.1.3.4 Stopping |

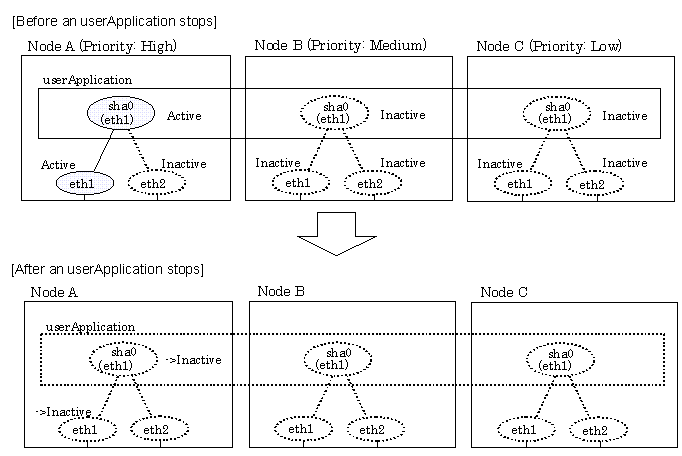

Figure 5.26 illustrates stopping operation of a userApplication for logical IP takeover.

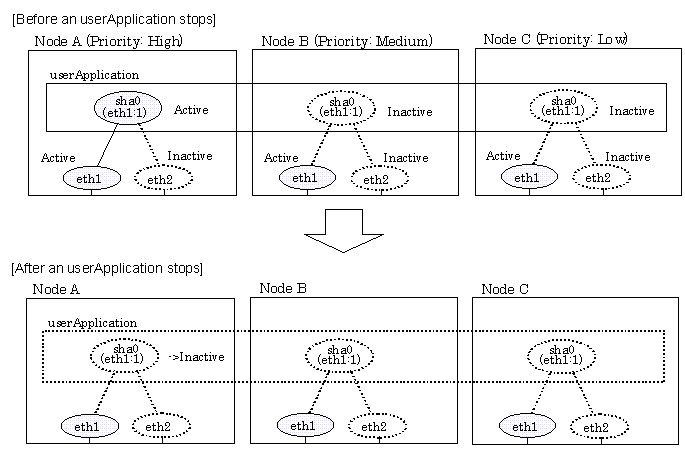

Figure 5.27 illustrates stopping operation of an userApplication for physical IP takeover I.

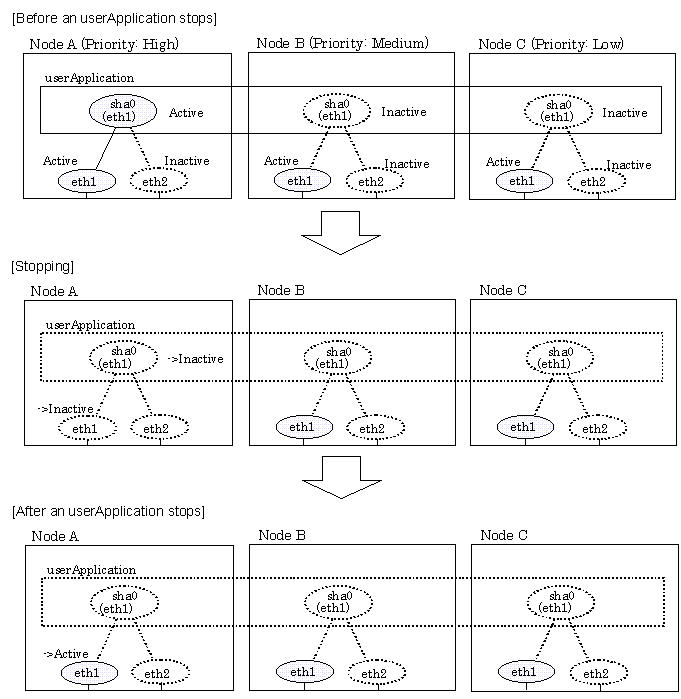

Figure 5.28 illustrates stopping operation of a userApplication for physical IP takeover II.
|
