PRIMECLUSTER Installation and Administration Guide 4.1 (for Linux)

6.7.3.4 Setting Up Gds Resources

After completing the preliminary setup for the Gds resources, register the Gds resources to the userApplication. The procedure for setting Gds resources to a userApplication is described below.

Operation Procedure:

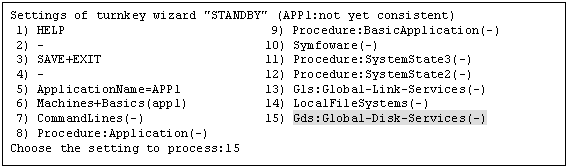

1. Select "Gds:Global-Disk-Services" from "turnkey wizard STANDBY."

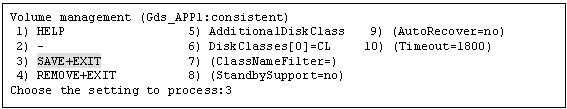

2. Select "AdditionalDiskClass" from "Volume management."

   If you want to register multiple resources, repeat steps 2 to 3 for each resource.

   Example) When you register the class [CL] of the shared volume in userApplication:



3. A list of the cluster resources that can be registered in userApplication appears.
   Select the cluster resource.



4. Select "SAVE+EXIT."
