PRIMECLUSTER Global Disk Services Configuration and Administration Guide 4.1 (Linux)

5.3.6 Copying Operation

The Copying Operation function controls synchronization copying of mirror volumes.

GDS provides the following copying operation.

• Start Copying
• Cancel Copying



Start Copying

Synchronization copying will be performed after attaching the slice that is in "invalid" or "copy-stop" status as a result of [Cancel Copying] operation.

For slices in "copy-stop" status, copying will resume from the point where copying was interrupted.



1. Select volume for synchronization copying

   In the GDS Configuration tree field or Volume Information field, select the volume you want to copy by clicking the icon.



2. Selecting [Start Copying] menu

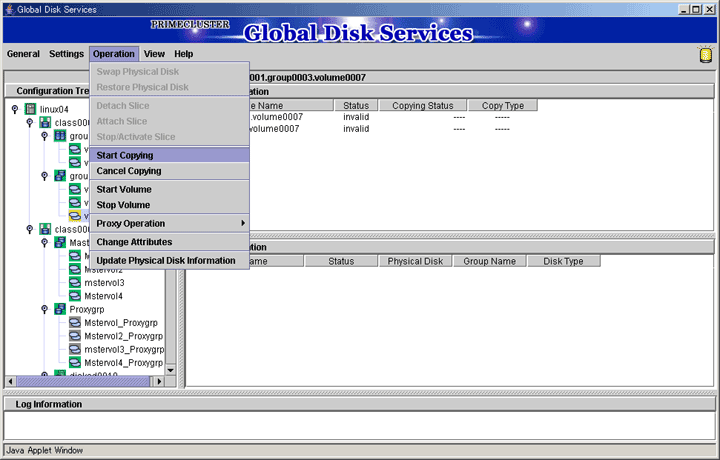

   In the main screen [Operation] menu, click [Start Copying].

   [Figure: Start Copying]



   The confirmation screen shown below appears.

   To proceed, press <Yes>. Pressing <No> cancels the [Start Copying] process.

   [Figure: Confirming Start Copying]






3. [Start Copying] completion screen

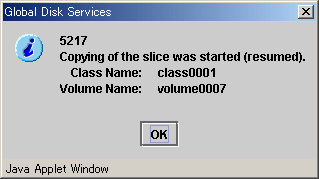

   Press <OK>, and the message notifying the [Start Copying] completion screen shown below appears.

   [Figure: Notifying Start Copying Completion]



   [Start Copying] operation unavailable
   When more than one volume is selected, [Start Copying] operation cannot be performed.



Cancel Copying

Execution of copying will be stopped to avoid effects caused by accessing the disk in the process of synchronization copying.

The slice whose copying has been stopped will be in "invalid" status. Perform [Start Copying] operation to resume its normal status



1. Select the volume to cancel copying

   In the GDS Configuration tree field or Volume Information field, select the volume in "copy" status by clicking the icon.



2. Selecting [Cancel Copying] menu

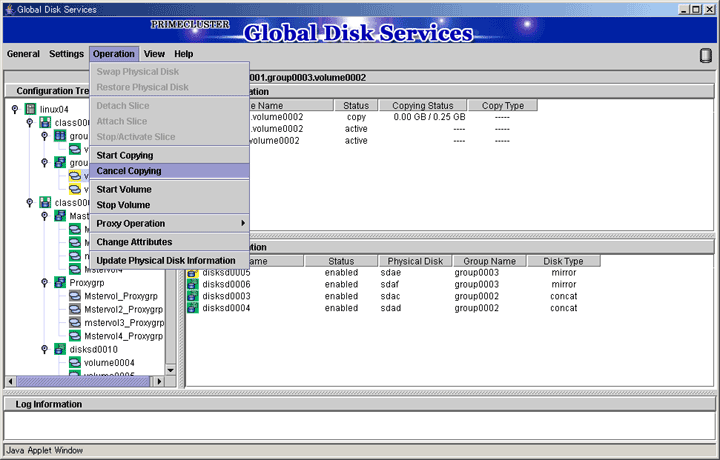

   In the main screen [Operation] menu, click [Cancel Copying].

   [Figure: Cancel Copying]



   The confirmation screen shown below appears.

   To proceed, press <Yes>. Pressing <No> cancels the [Cancel Copying] process.

   [Figure: Confirming Cancel Copying]






3. [Cancel Copying] completion screen

   Press <OK>, and the message notifying the [Cancel Copying] completion screen shown below appears.

   [Figure: Notifying Cancel Copying Completion]



   [Cancel Copying] operation unavailable
   When more than one volume is selected, [Cancel Copying] operation cannot be performed.
