Chapter 5 Operation> 5.1 Operation Outline> 5.1.2 Backup

5.1.2.2 Backup (by Synchronization)

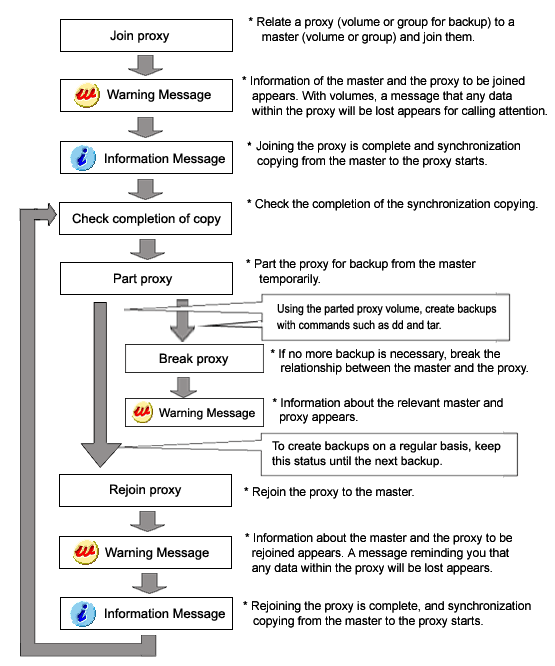

The following figure shows the procedures for backing up volumes through use of snapshots (proxy volumes) of GDS Snapshot created by synchronization.

[Chart: Backup Operation (by Synchronization)]



For details about the operation methods, see "Backup (by Synchronization)."
