PRIMECLUSTER Global Disk Services Configuration and Administration Guide 4.1 (Linux)

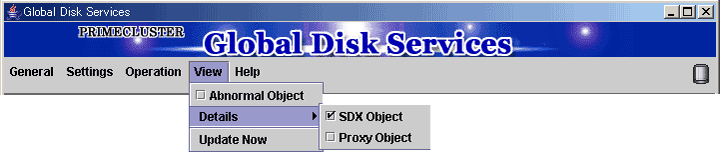

4.2.4 View

Abnormal Object

Only displays objects with abnormalities; not all objects.



Details

Changes displayed contents in the Object Information Field.
By default, [SDX Object] is selected.

SDX Object

Displays information of volumes, disks and slices.

Proxy Object

Displays information of proxy volumes, proxy groups and slices.

For details about the Objects Information Field, see " Object Information "



Update Now

Usually, GDS Management screen updates the information on object status at an interval specified by [Change Monitoring Intervals] in the [General] menu.

If you select [Update Now], object status will be updated immediately regardless to the interval specified by [Change Monitoring Intervals].

In order to recognize the disk again, select [Update Physical Disk Information] from [Operation] menu.
